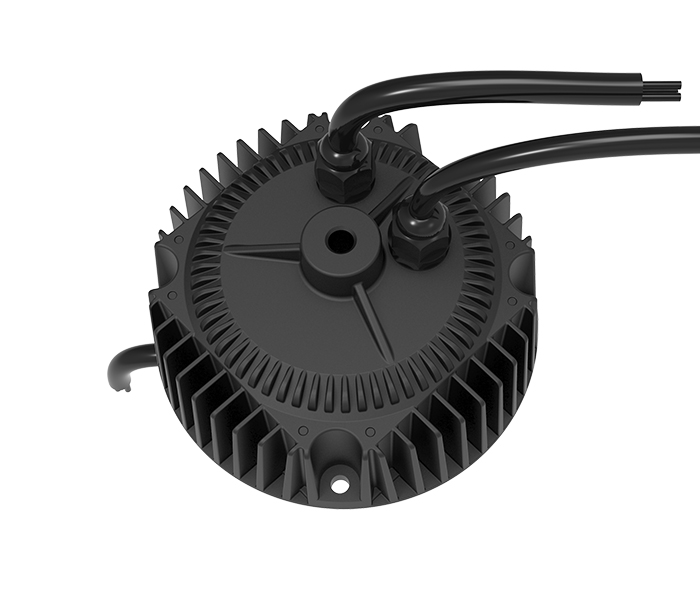

200RF - RF Series LED Driver

V: IP65 Level，Io adjustable through potentiometer D: IP65 Level，3 in 1dimming function (1-10VDC,10V PWM signal and resistance), Io adjustable through potentiometer

Universal AC input/Full rang 90-305VAC

Built-in active PFC function

Protections：Short circuit/Over current /Over voltage

Cooling by free air convection

Built-in 3 in 1 dimming function (1～10VDC or 10V PWM signal or resistance)

Metal case, IP65 design for indoor or outdoor installations

Suitable for outdoor LED street lighting, outdoor LED and moving sign applications

Ultra-long life

INQUIRY NOW

Product parameters
Specification

SPECIFCATION

Parameter Name	Min.	Typ.	Max.	Unit
Input Voltage	100	110;230	277	Vac
Input Current	---	2.0;0.9	2	A
Power Factor	0.95	0.99	--	PF
THD	4	5	10	%
Frequency Rang	47	50\60	63	Hz
Output no-load Voltage	143	146	148	Vdc
Output Serving Voltage	100	142	143	Vdc
Output Current	-3%	0.71-1.408	+3%	Adc
Overshoot	---	---	10	％
Ripple & Noise	---	---	300	mV
No Load Power	---	0.5	2	W
Efficiency	90	95	---	%（230VAC）
Over Current Protection	---	---	110	%
Short Circuit Protection	Constant Current limiting, recovers automatically after fault condition is removed
Inrush Current(Typ.)	COLD START 65A(twidth=606us measured at 50% Ipeak) at 230Vac
MAX. No. of PSUs on 16A Circuit Breaker	4units (circuit breaker of type B)/6 units (circuit breaker of type C) at 230VAC

WORKING ENVIRONMENT

Item	Min.	Typ.	Max.	Unit
Working Temp.	-40-70℃（Please refer to “OUTPUT LOAD vs TEMPERATURE” section）
IP Rating	IP65
MAX. Working Humidity	20-95%RH non-condensing
Cooling Method	Cooling by free air convection，External LED Driver can improve the lifespan.
Storage Temp. , Humidity	-40-80℃,10-95%RH
Working Atmosphere	70	---	106	Kpa

SAFETY

Item	Min.	Typ.	Max.	Unit
I/P-FG	2000	---	---	V(AC)
O/P-FG	2000	---	---	V(DC)
Surge: L-N	---	4000	---	V
Surge :L,N-FG	---	4000	---	V

OTHER

MTBF	≥200.8Khrs MIL-HDBK-217F (25℃)

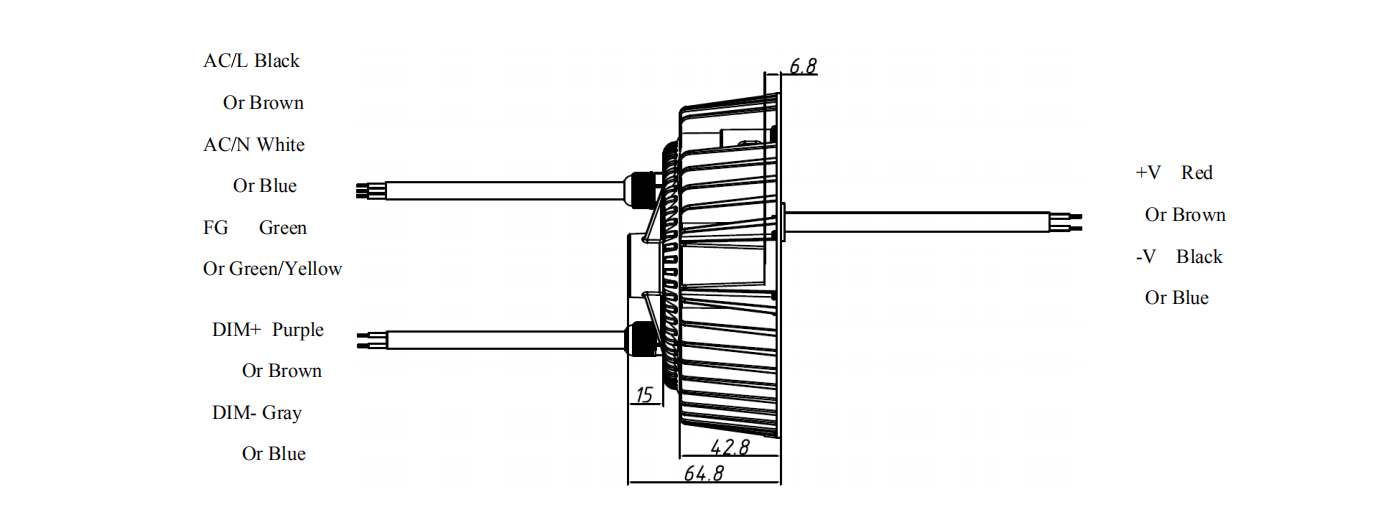

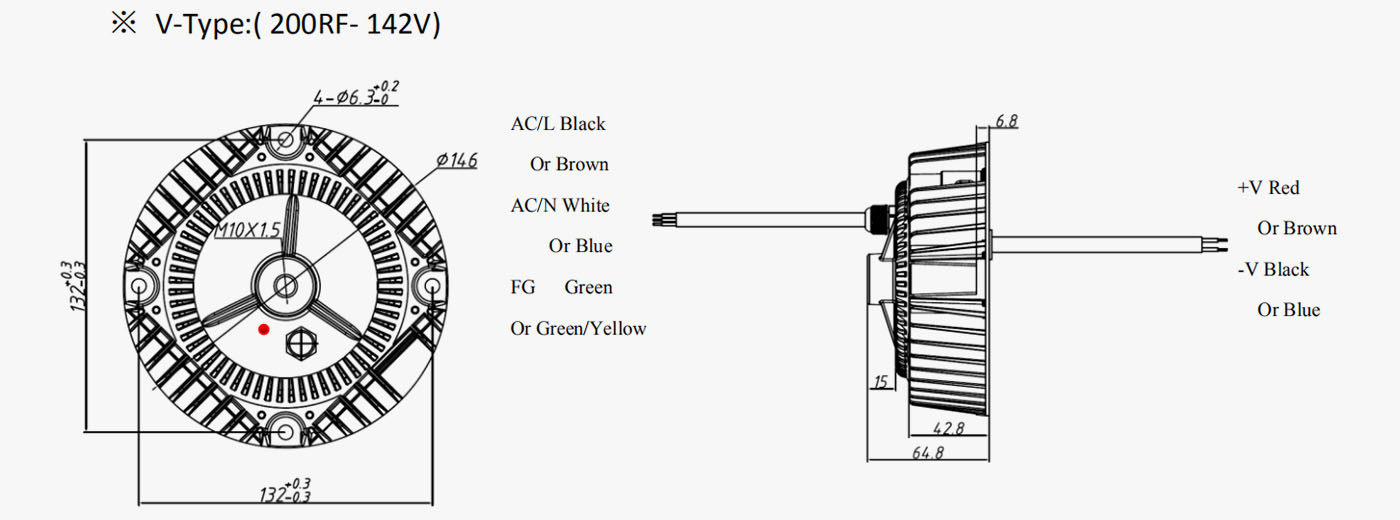

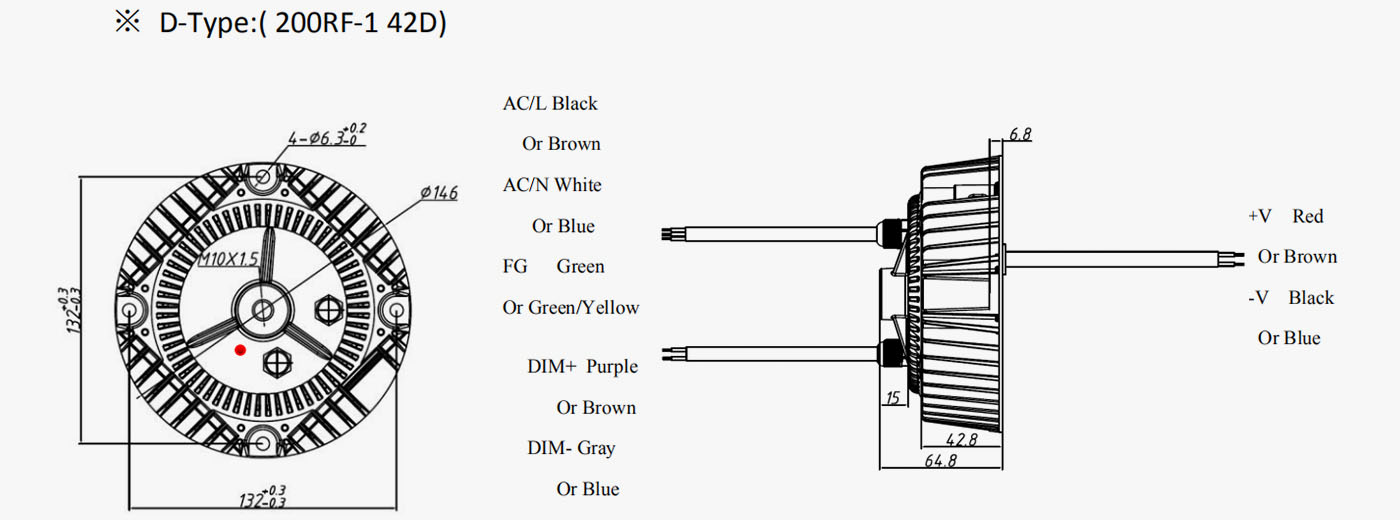

MECHANNIC SPECIFICATION

·tc: MAX. Case Temperature.(case temperature measured point)

·tc: MAX. Case Temperature.(case temperature measured point)

DIMMING OPERATION

3 in 1 dimming function(for D-Type)

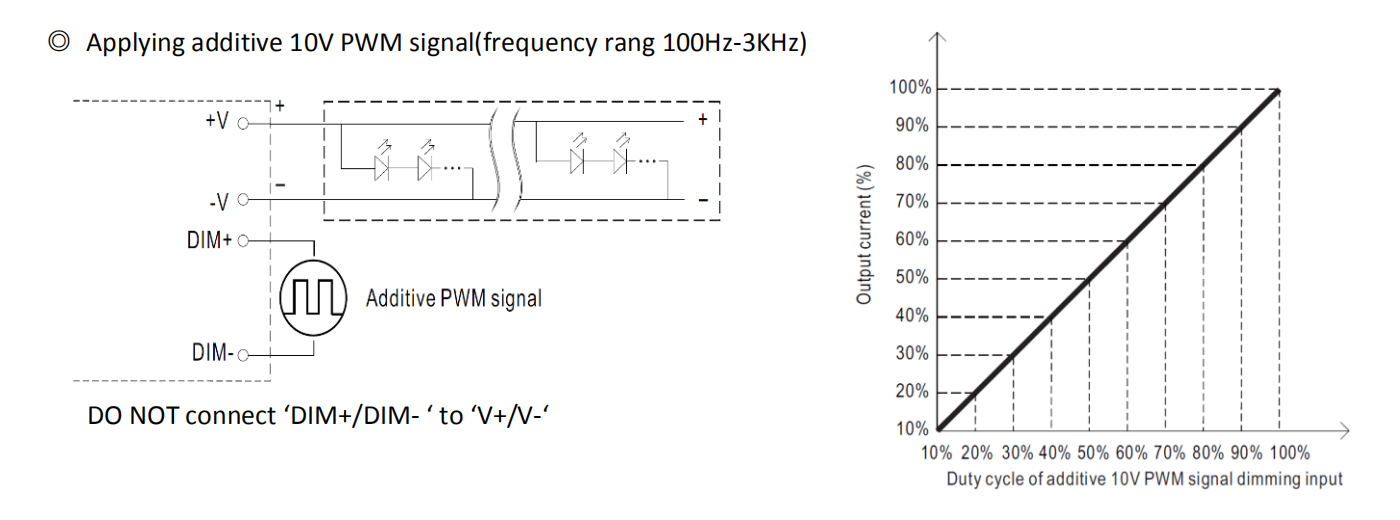

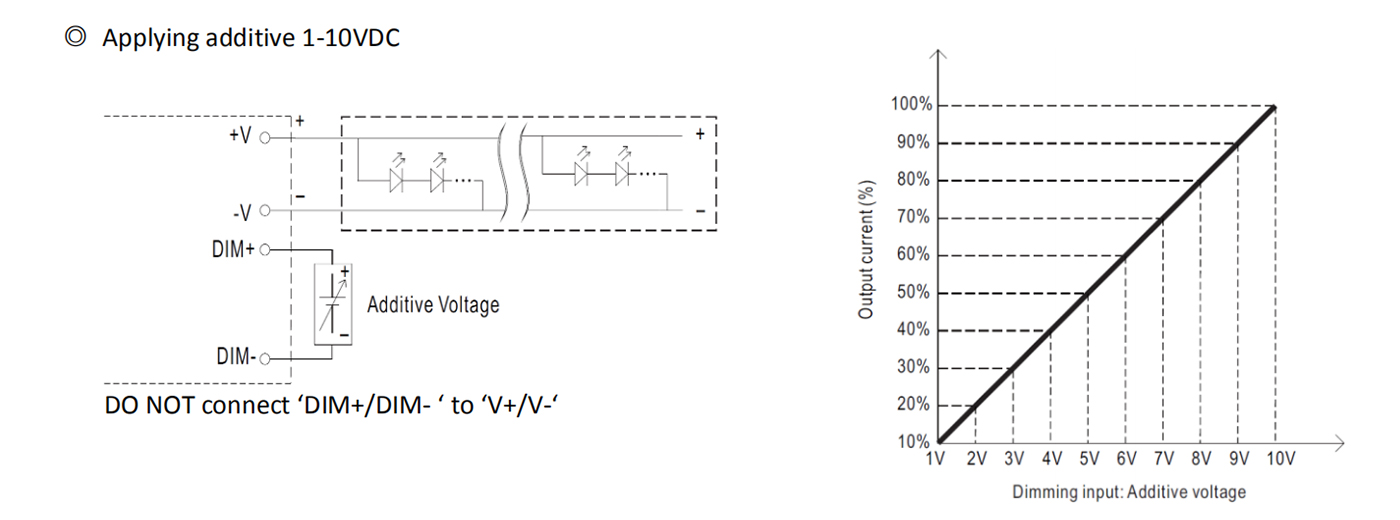

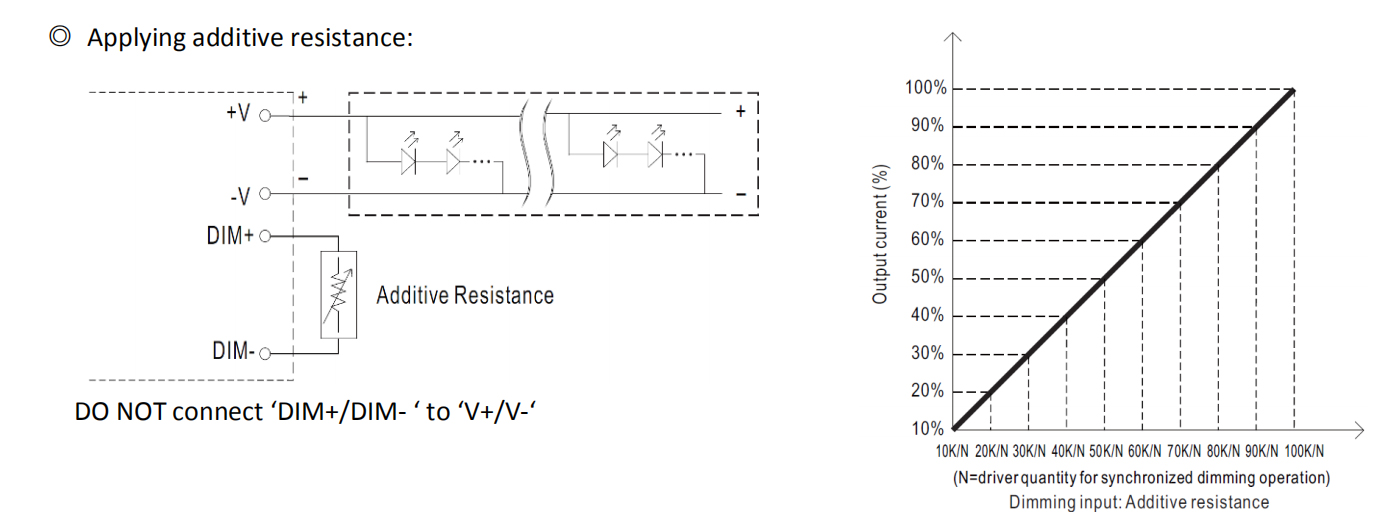

· Output constant current level can be adjusted by applying one of the three methodologies between DIM+ and DIM-:1-10VDC, or 10V PWM signal or resistance.

· Direct connecting to LEDs is suggested .It is not suitable to be used with additional drivers.

· Dimming source current from power supply: 100uA (typ.).

Note: In the case of turning the lighting fixture down to 0% brightness ,

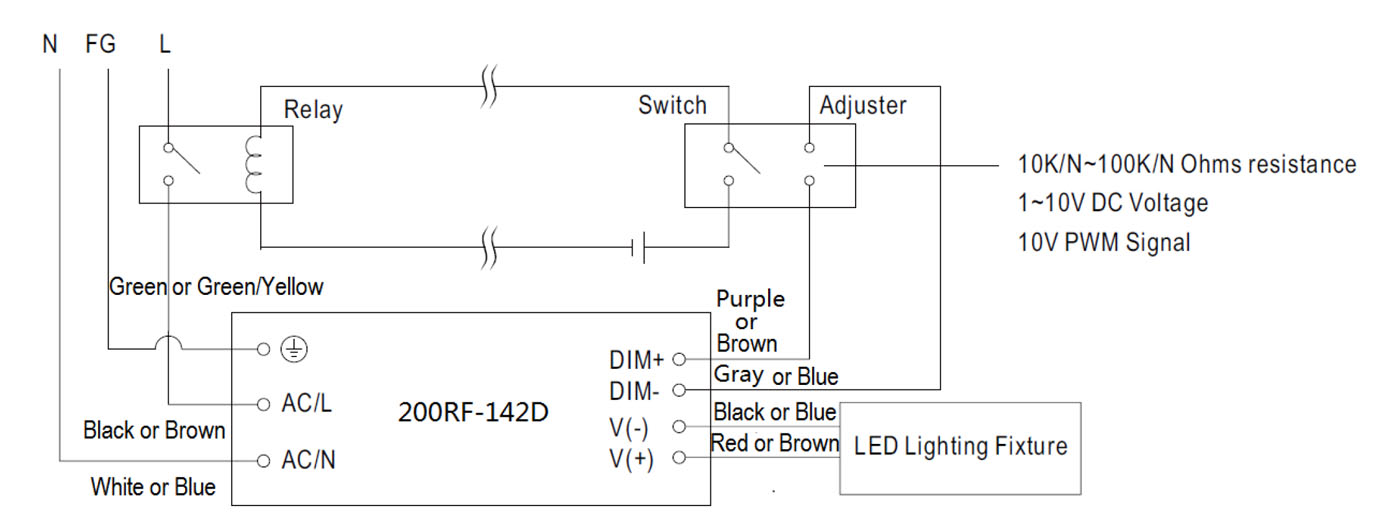

please refer to the configuration as follow:

Using a switch and relay can turn ON/OFF the lighting fixture.

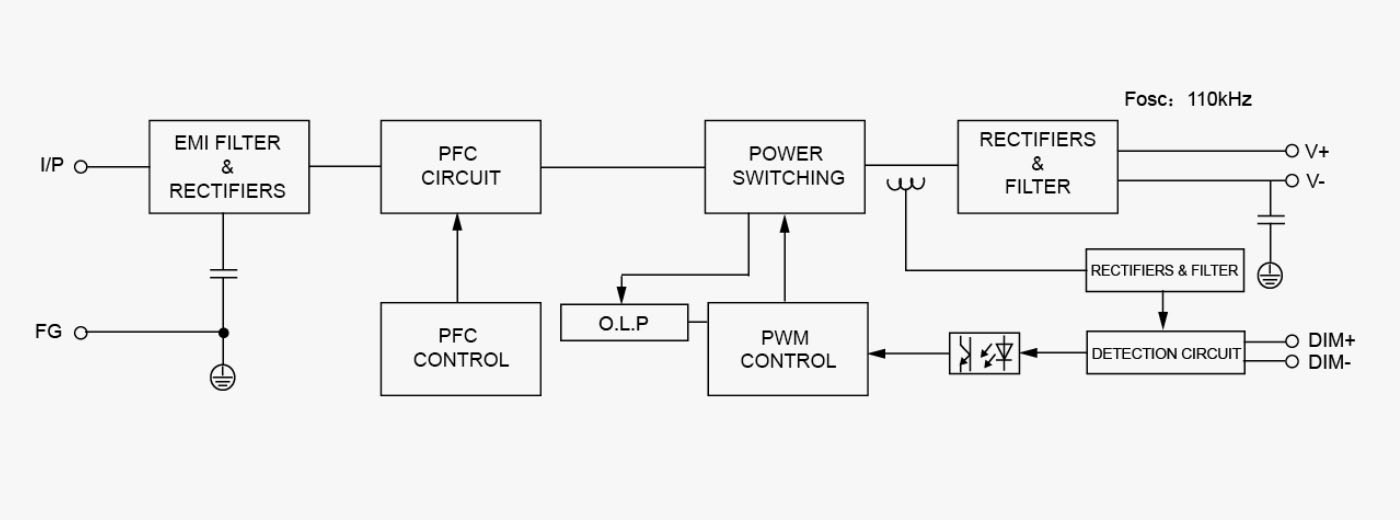

BLOCK DIAGRAM

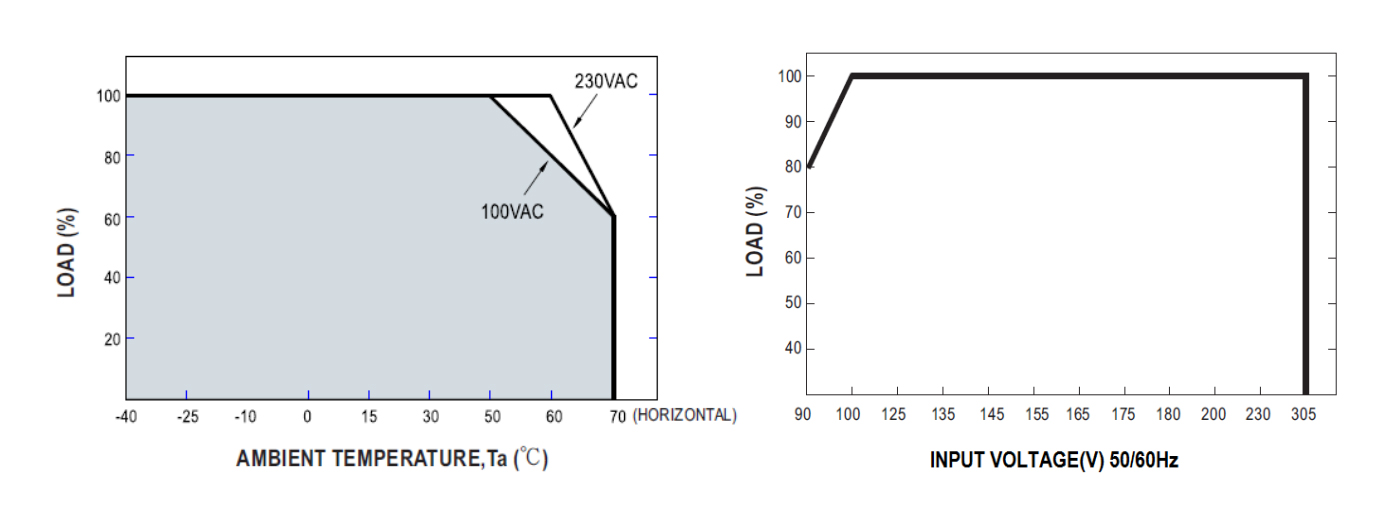

OUTPUT LOAD vs TEMPERATURE

STATIC CHARACTERISTICS

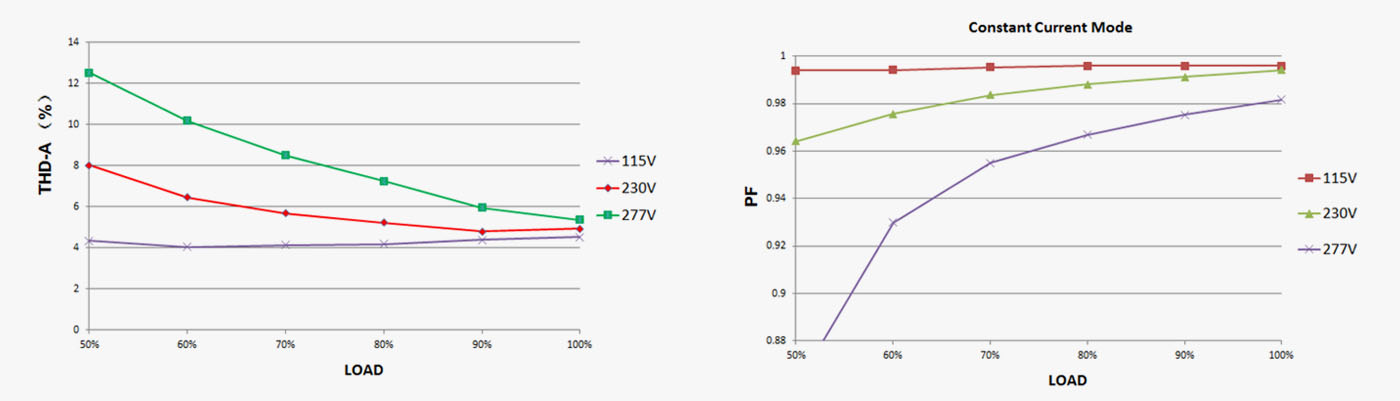

POWER FACTOR (PF) CHARACTERISTIC

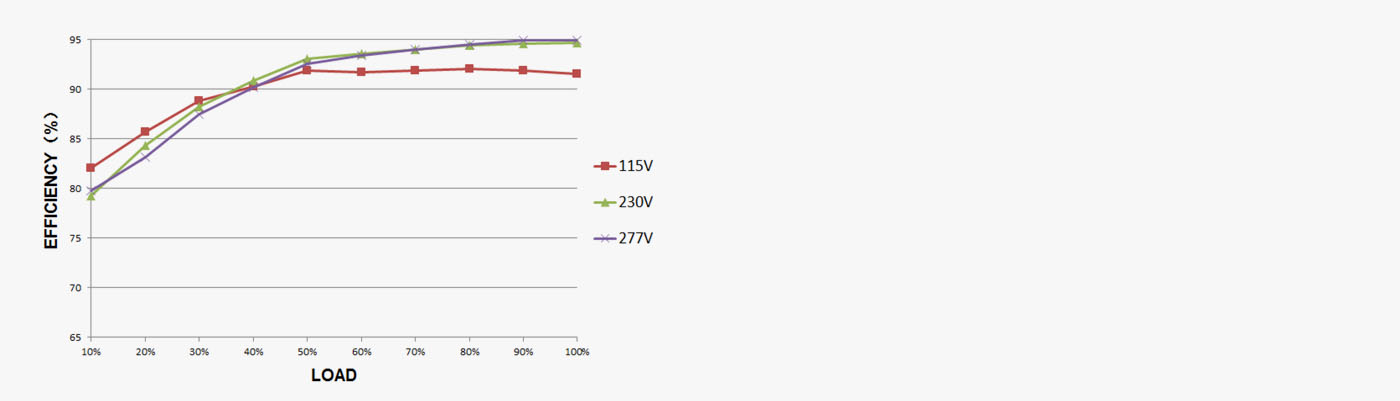

EFFICIENCY vs LOAD

200RF series possess superior working efficiency that up to 95%
Can be reached in field applications.

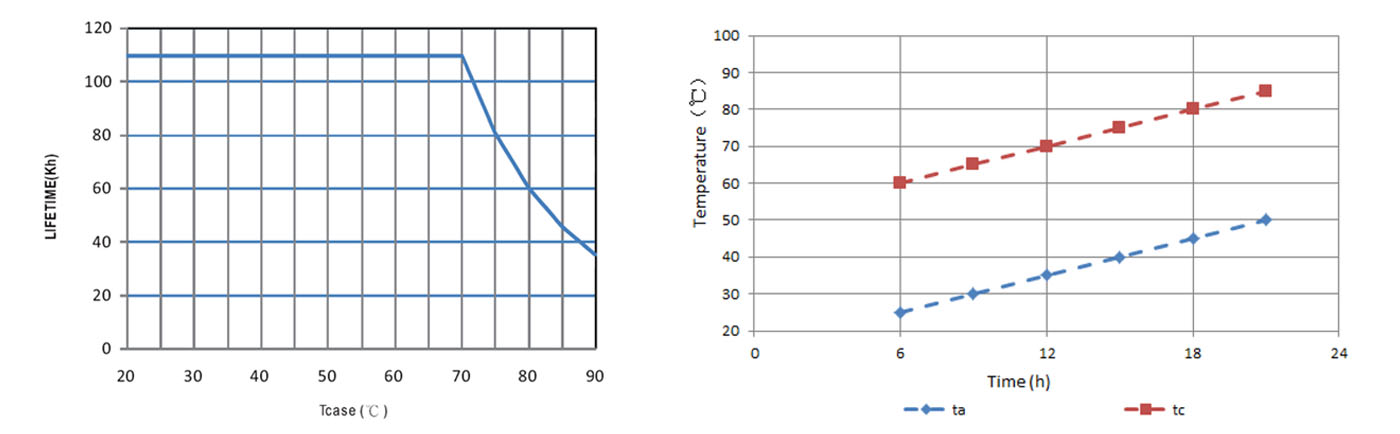

LIFETIME

DRIVING METHODS OF LED MODULE

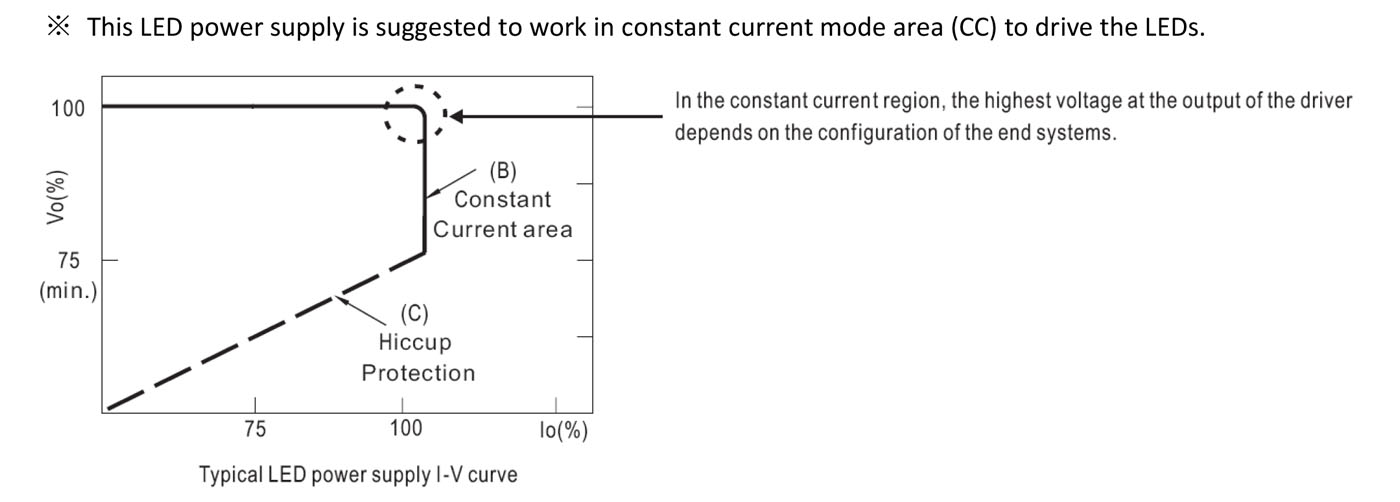

This LED power supply is suggested to work in constant current mode area (CC) to drive the LEDs.
