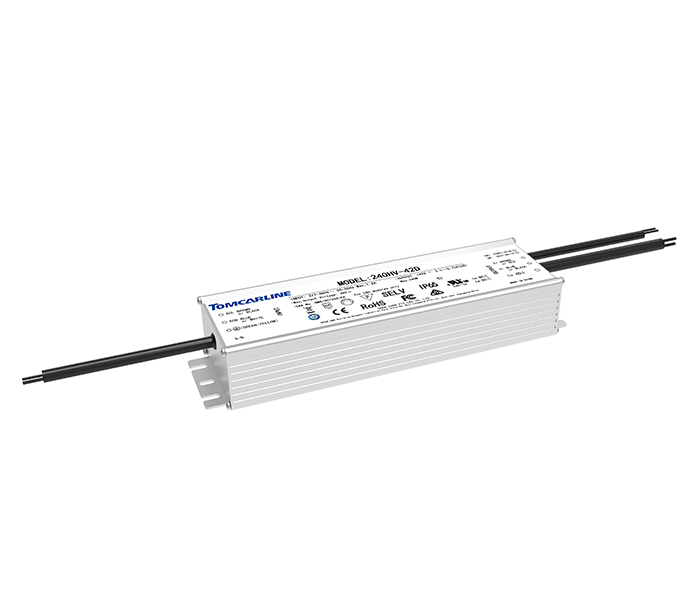

240HV - HV Series LED Driver

V: IP65Level，Io adjustable through built-in potentiometer D: IP65Level，3 in 1 dimming function (1～10VDC,10V PWM signal and resistance), Io adjustable through built-in potentiometer

Universal AC input/Full rang 250～528VAC

Built-in active PFC function

Protections：Short circuit/Over current /Over voltage

Cooling by free air convection

Built-in 3 in 1 dimming function (1～10VDC or 10V PWM signal or resistance)

Metal case, IP65 design for indoor or outdoor installations

Suitable for outdoor LED street lighting, outdoor LED and moving sign applications

Ultra-long life

INQUIRY NOW

Product parameters
Specification

SPECIFCATION

Parameter Name	Min.	Typ.	Max.	Unit
Input Voltage	277	347	480	Vac
Input Current	---	0.76	1.2	A
Power Factor	0.95	0.98	0.99	PF
THD	5	10	18	%
Frequency Rang	47	50\60	63	Hz
Output no-load Voltage	43	46	48	Vdc
Output Serving Voltage	36	42	43	Vdc
Output Current	-3%	3.58-5.72	+3%	Adc
Overshoot	---	---	10	％
Ripple & Noise	---	---	300	mV
No Load Power	---	0.5	2	W
Efficiency	88	93	---	%（277VAC）
Over Current Protection	---	---	110	%
Short Circuit Protection	Constant Current limiting, recovers automatically after fault condition is removed
Inrush Current(Typ.)	Cold Start 48A(twidth=547 measured at 50% Ipeak) at 480VAC
MAX. No. of PSUs on 16A Circuit Breaker	4 units (circuit breaker of type B)/6units (circuit breaker of type C) at 480VAC

WORKING ENVIRONMENT

Item	Min.	Typ.	Max.	Unit
Working Temp.	-40～+70℃（Please refer to “OUTPUT LOAD vs TEMPERATURE” section）
IP Rating	IP65,IP67
MAX. Working Humidity	20～95%RH non-condensing
Cooling Method	Cooling by free air convection，External LED Driver can improve the lifespan.
Storage Temp. , Humidity	-40～+80℃,10～95%RH
Working Atmosphere	70	---	106	Kpa

SAFETY

Item	Min.	Typ.	Max.	Unit
I/P-O/P	---	3750	---	V(AC)
I/P-FG	---	2000	---	V(AC)
O/P-FG	---	500	---	V(DC)
Surge: L-N	---	2000	---	V
Surge :L,N-FG	---	4000	---	V

OTHER

MTBF	≥125.7Khrs MIL-HDBK-217F (25℃)

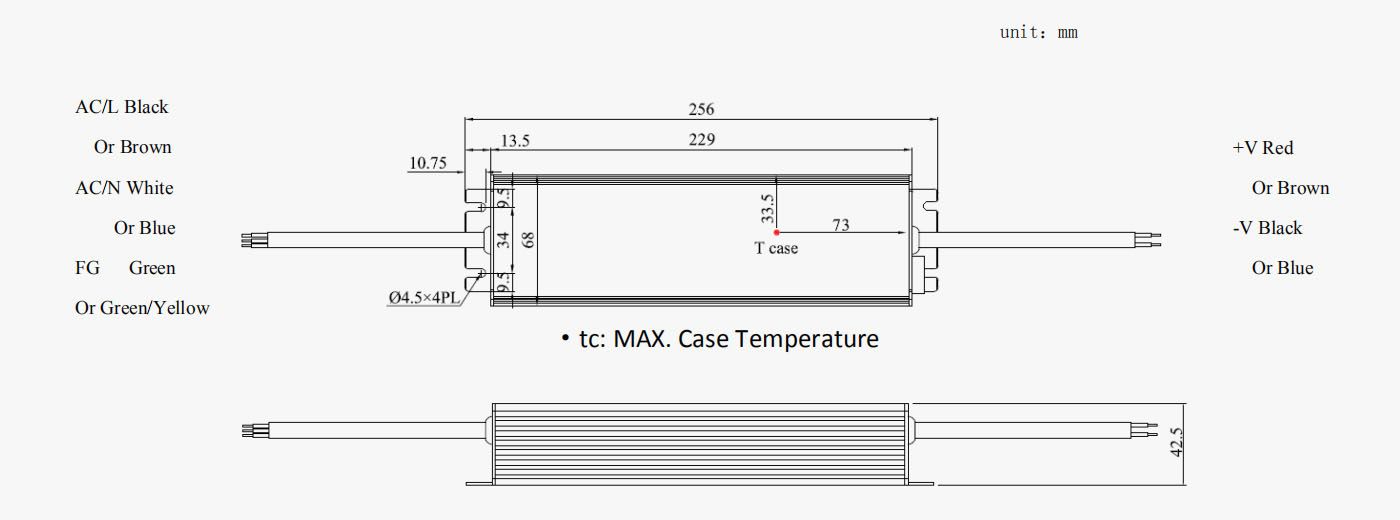

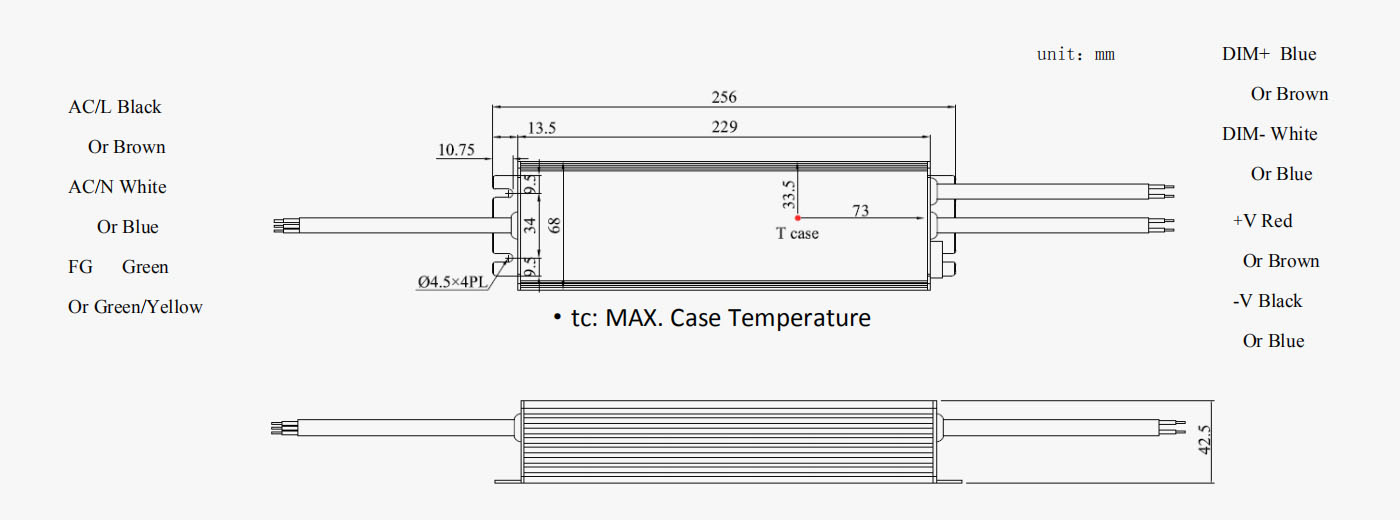

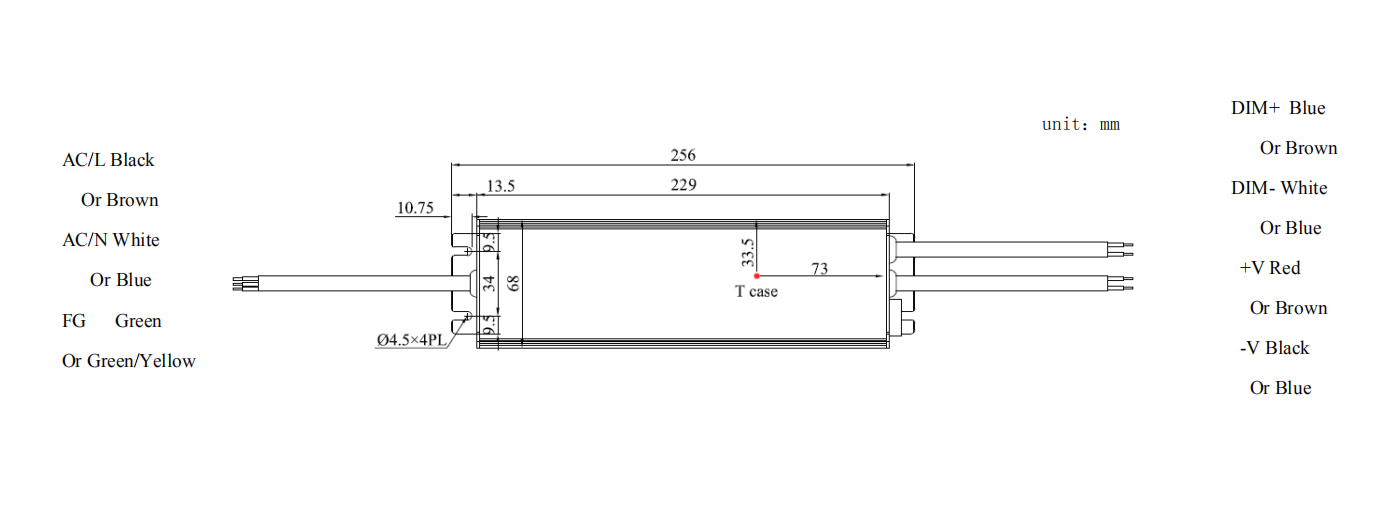

MECHANNIC SPECIFICATION

V-Type:( 240HV- 42V)

D-Type:( 240HV- 42D)

DIMMING OPERATION

3 in 1 dimming function(for D-Type)

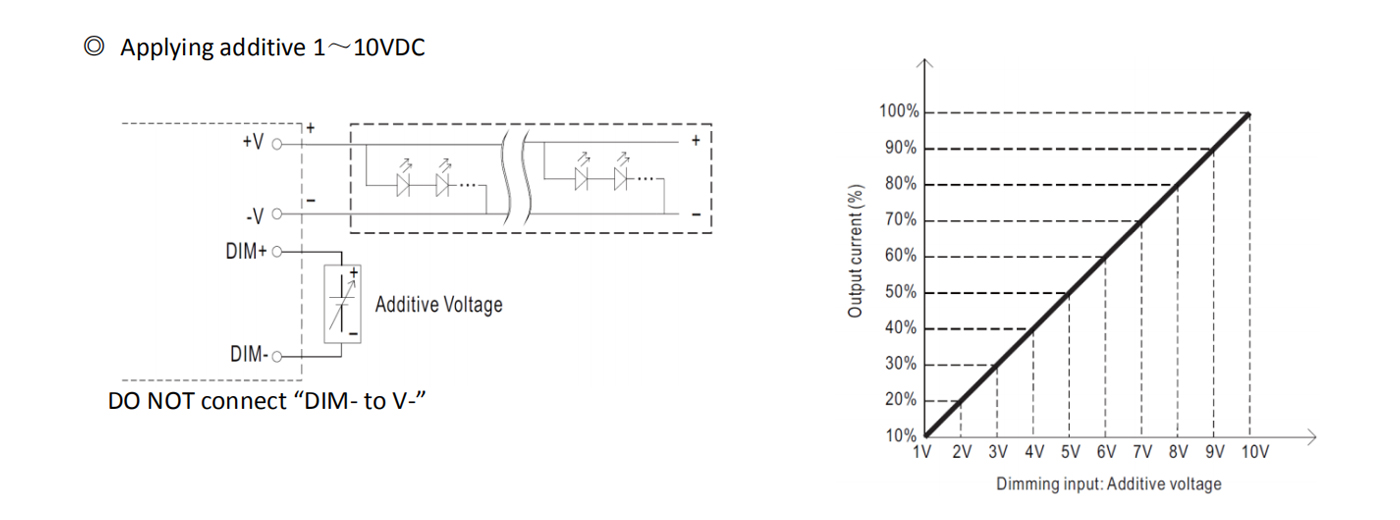

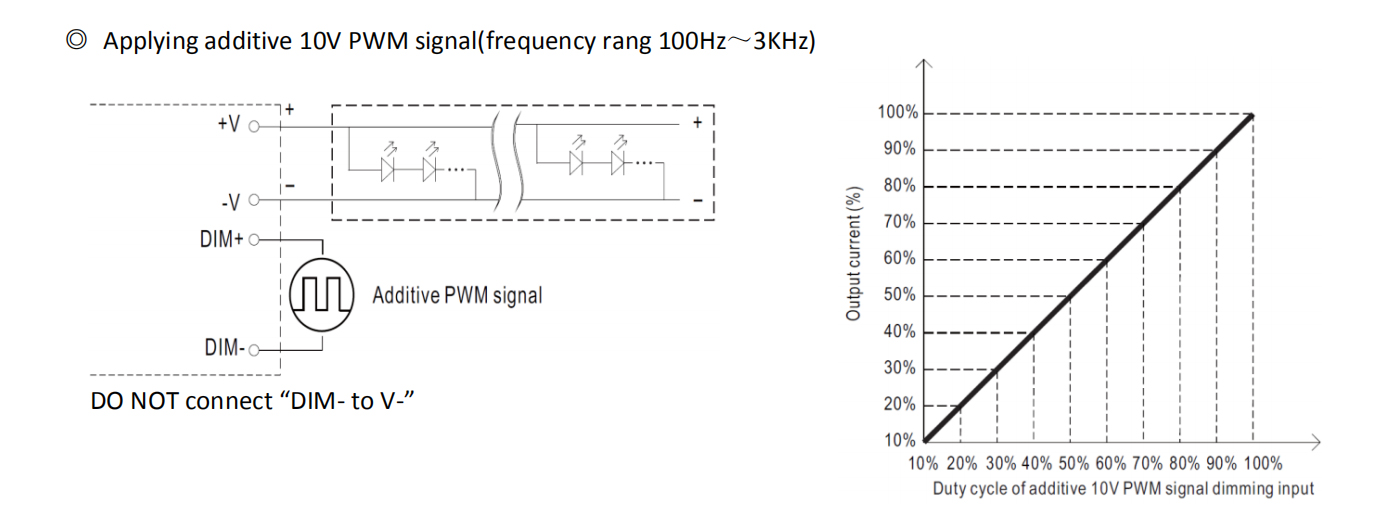

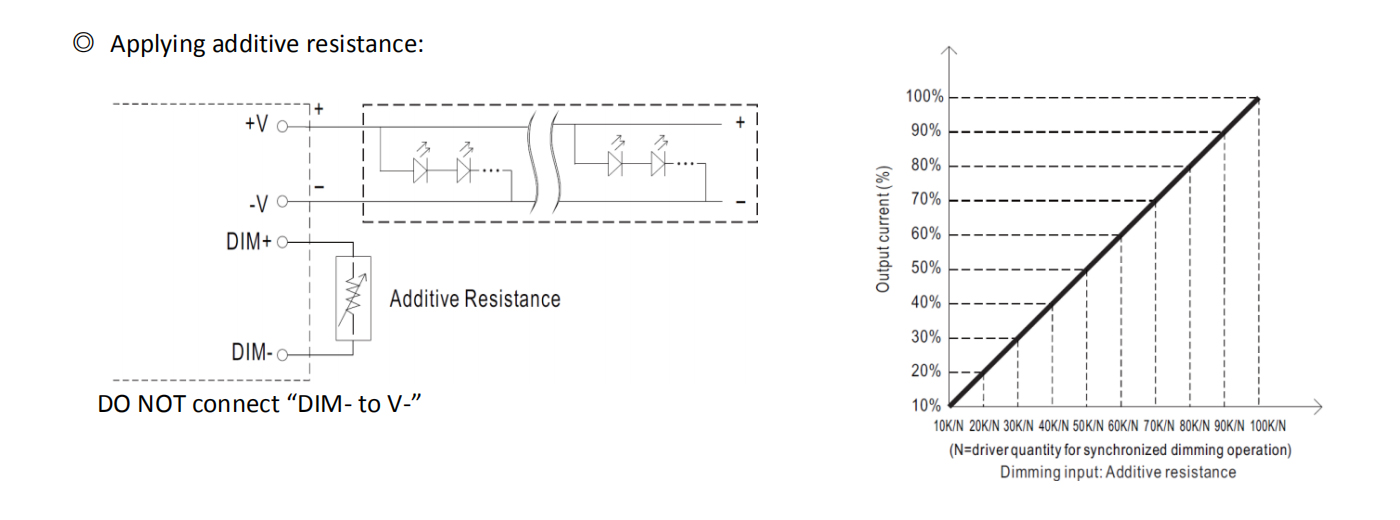

· Output constant current level can be adjusted by applying one of the three methodologies between DIM+ and DIM-:1～10VDC, or 10V PWM signal or resistance

· Direct connecting to LEDs is suggested. It is not suitable to be used with additional drivers.

· Dimming source current from power supply: 100uA (typ.).

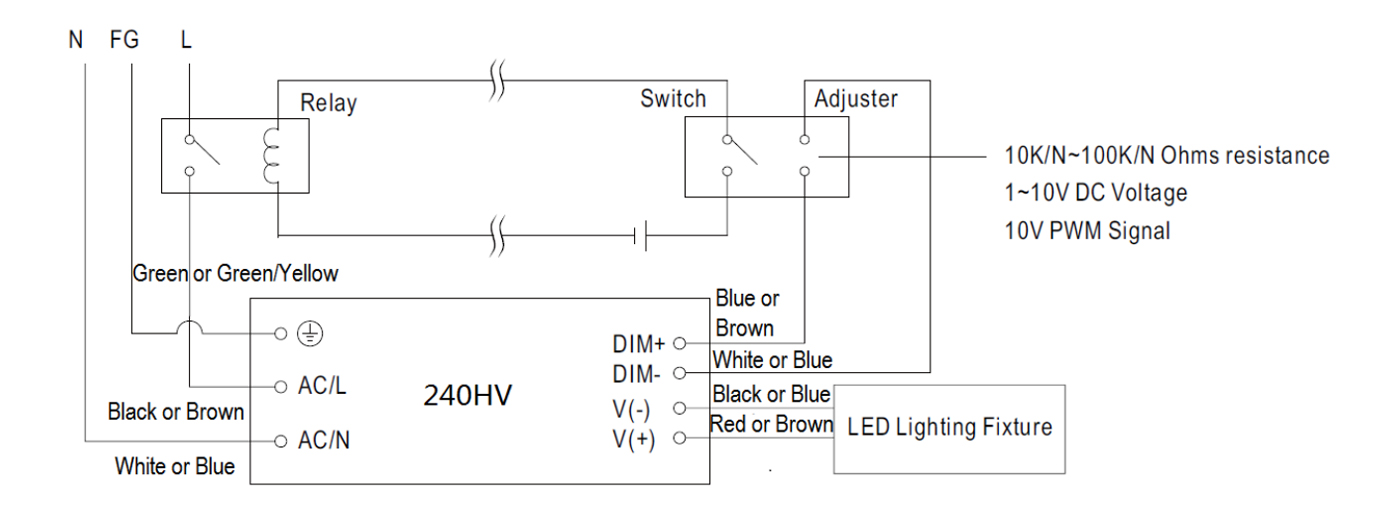

Note: In the case of turning the lighting fixture down to 0% brightness ,
please refer to the configuration as follow:

Using a switch and relay can turn ON/OFF the lighting fixture.

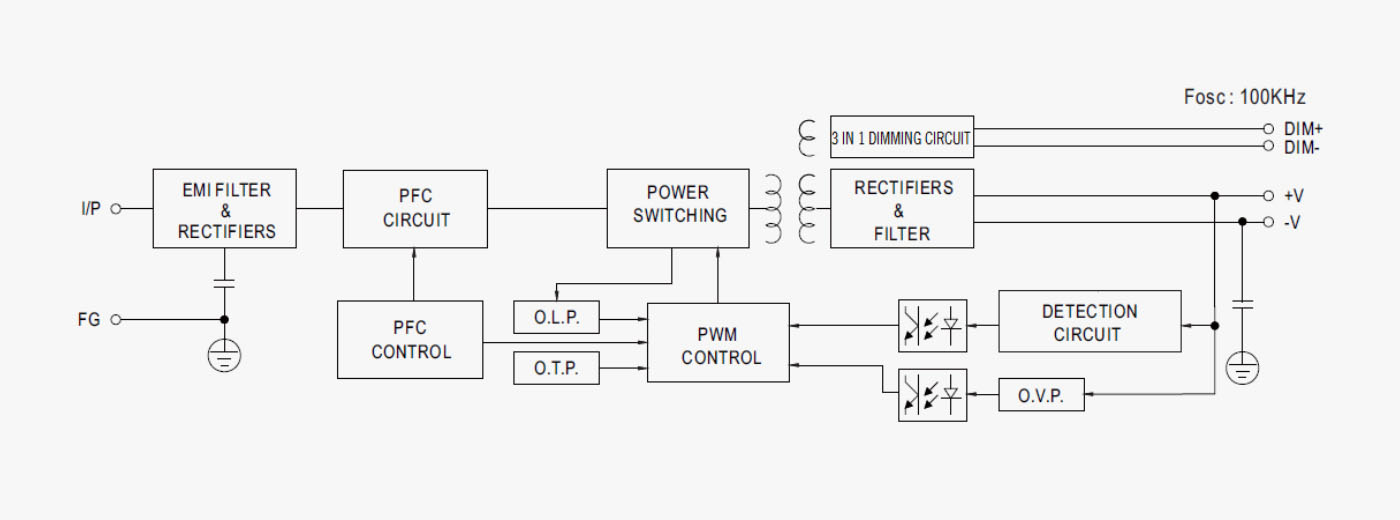

BLOCK DIAGRAM

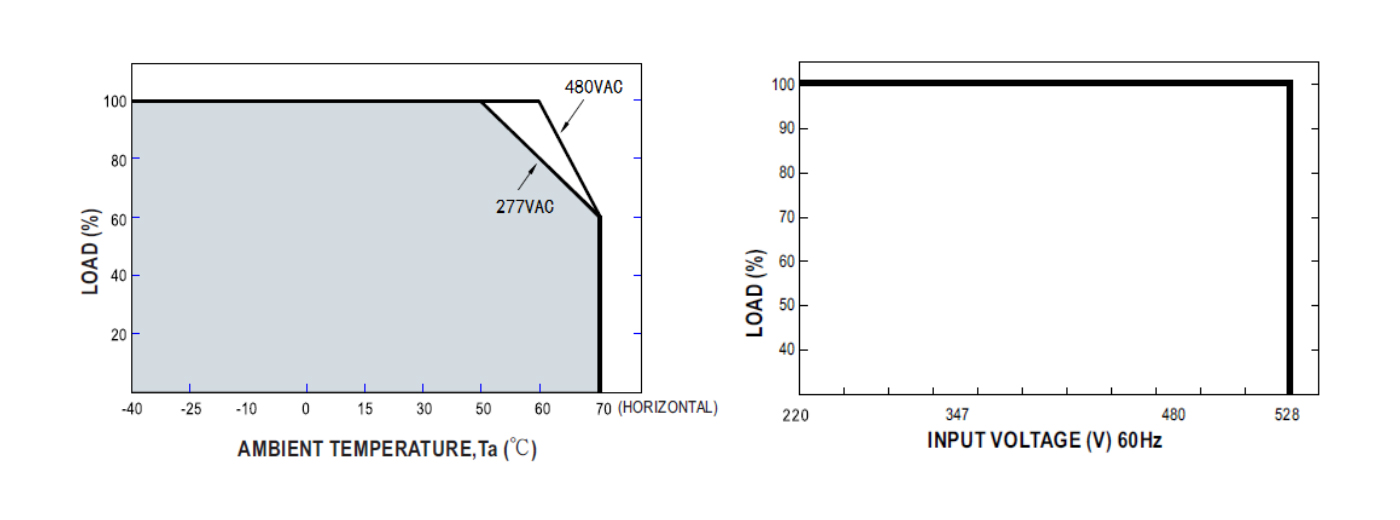

OUTPUT LOAD vs TEMPERATURE

STATIC CHARACTERISTICS

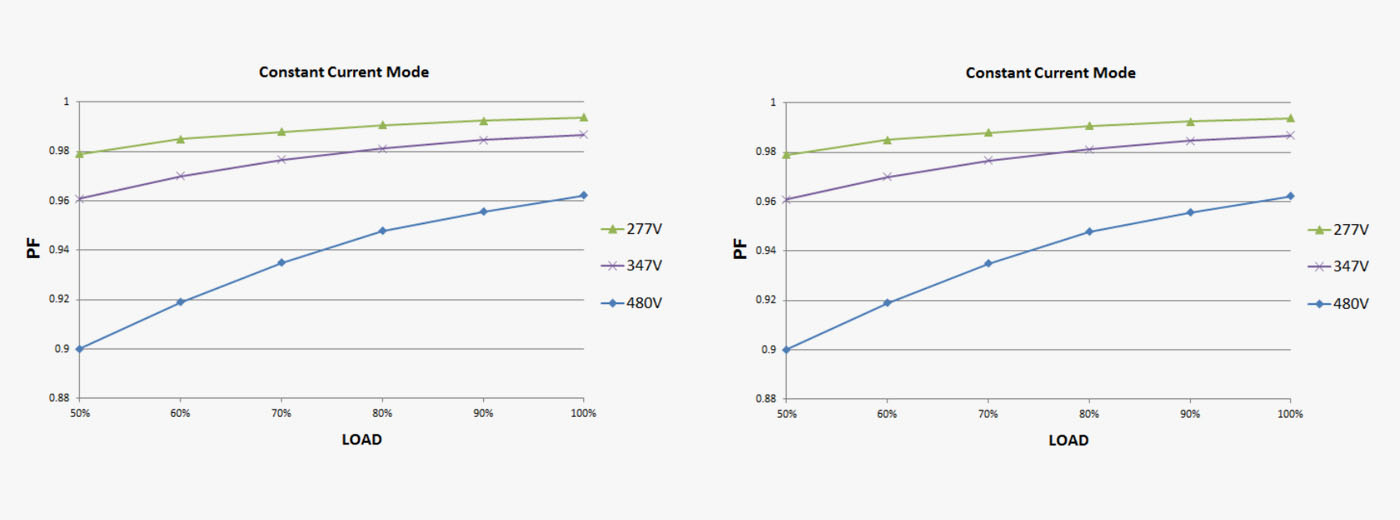

POWER FACTOR (PF) CHARACTERISTIC

EFFICIENCY vs LOAD

240HV series possess superior working efficiency that up to 93%
Can be reached in field applications.

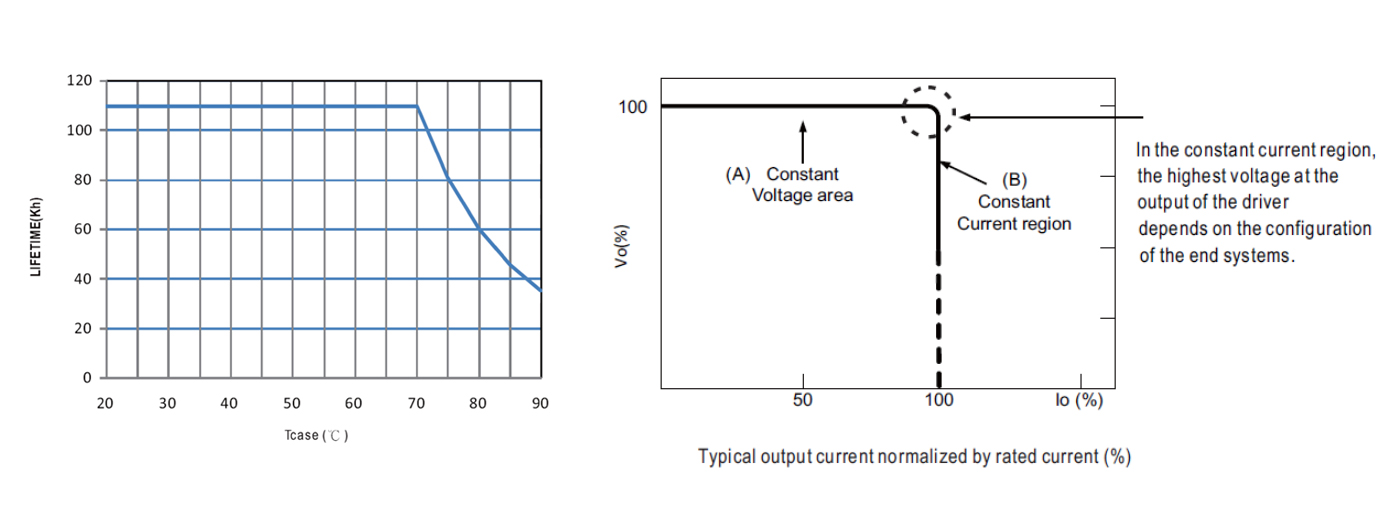

LIFETIME

DRIVING METHODS OF LED MODULE

This series is able to work in either Constant Current mode(a direct drive way) or Constant Voltage mode (usually through additional DC/DC drive) to drive the LEDs.
