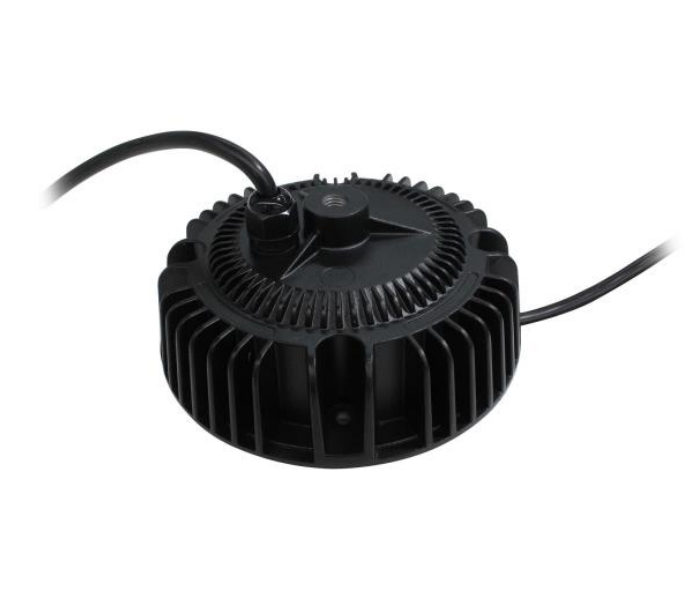

150RT - HT&RT High Temperature Series LED Driver

V: IP65 Level，Io adjustable through potentiometer D: IP65 Level，3 in 1dimming function (1-10VDC,10V PWM signal and resistance), Io adjustable through potentiometer

Universal AC input/Full rang 90-305VAC

Built-in active PFC function

Protections：Short circuit/Over current /Over voltage

Cooling by free air convection

Built-in 3 in 1 dimming function (1-10VDC or 10V PWM signal or resistance)

Metal case,IP65 design for indoor or outdoor installations

Suitable for LED lighting( ta up to 65℃)

Ultra-long life

INQUIRY NOW

Product parameters
Specification

SPECIFCATION

Parameter Name	Min.	Typ.	Max.	Unit
Input Voltage	100	230	277	Vac
Input Current	---	0.8	2	A
Power Factor	0.95	0.98	0.99	PF
THD	4	8	20	%
Frequency Rang	47	50\60	63	Hz
Output no-load Voltage	43	46	48	Vdc
Output Serving Voltage	36	42	43	Vdc
Output Current	-3%	1.78-3.57	+3%	Adc
Overshoot	---	---	10	％
Ripple & Noise	---	---	300	mV
No Load Power	---	0.5	2	W
Efficiency	88	91	---	%（230VAC）
Over Current Protection	---	---	110	%
Short Circuit Protection	Constant Current limiting, recovers automatically after fault condition is removed
Inrush Current(Typ.)	COLD START 67A(twidth=536us measured at 50% Ipeak) at 230Vac
MAX. No. of PSUs on 16A Circuit Breaker	4units (circuit breaker of type B)/6 units (circuit breaker of type C) at 230VAC

WORKING ENVIRONMENT

Item	Min.	Typ.	Max.	Unit
Working Temp.	-40～+70℃（Please refer to “OUTPUT LOAD vs TEMPERATURE” section）
IP Rating	IP65
MAX. Working Humidity	20～95%RH non-condensing
Cooling Method	Cooling by free air convection，External LED Driver can improve the lifespan.
Storage Temp. , Humidity	-40～+80℃,10～95%RH
Working Atmosphere	70	---	106	Kpa

SAFETY

Item	Min.	Typ.	Max.	Unit
I/P-O/P	3750	---	---	V(AC)
I/P-FG	2000	---	---	V(AC)
O/P-FG	500	---	---	V(DC)
Surge: L-N	---	2000	---	V
Surge :L,N-FG	---	4000	---	V

OTHER

MTBF	≥197.1Khrs MIL-HDBK-217F (25℃)

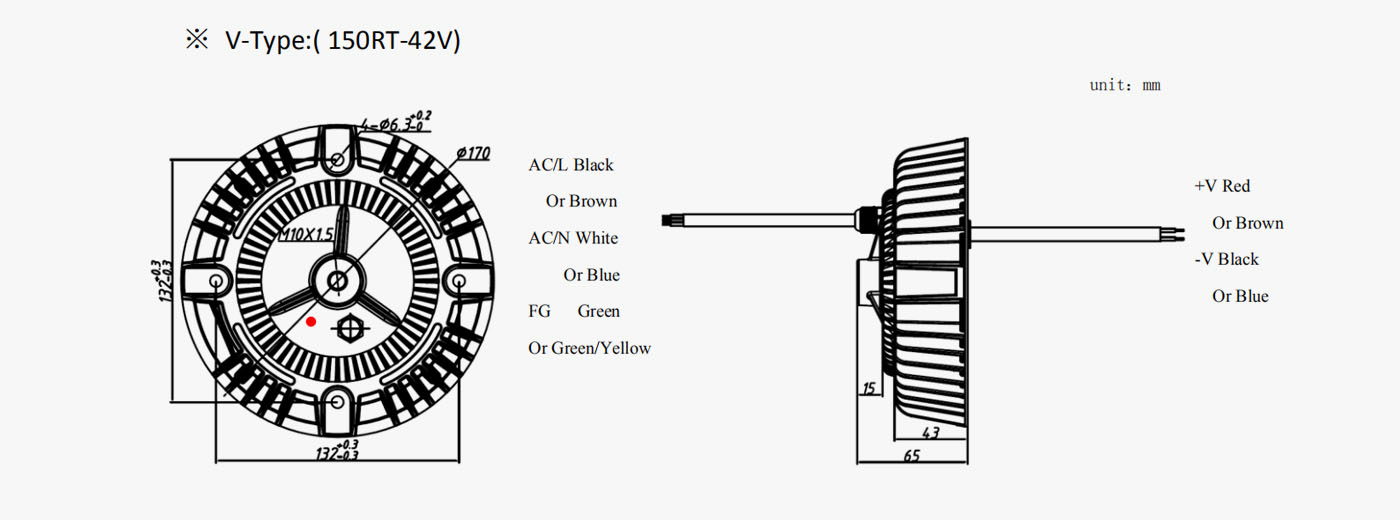

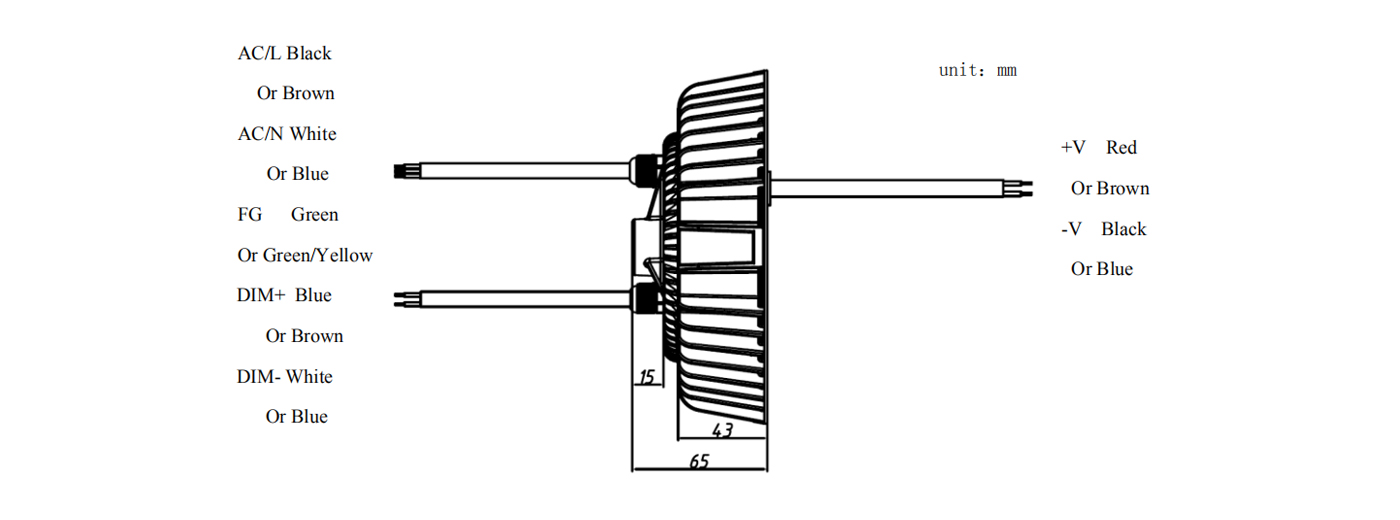

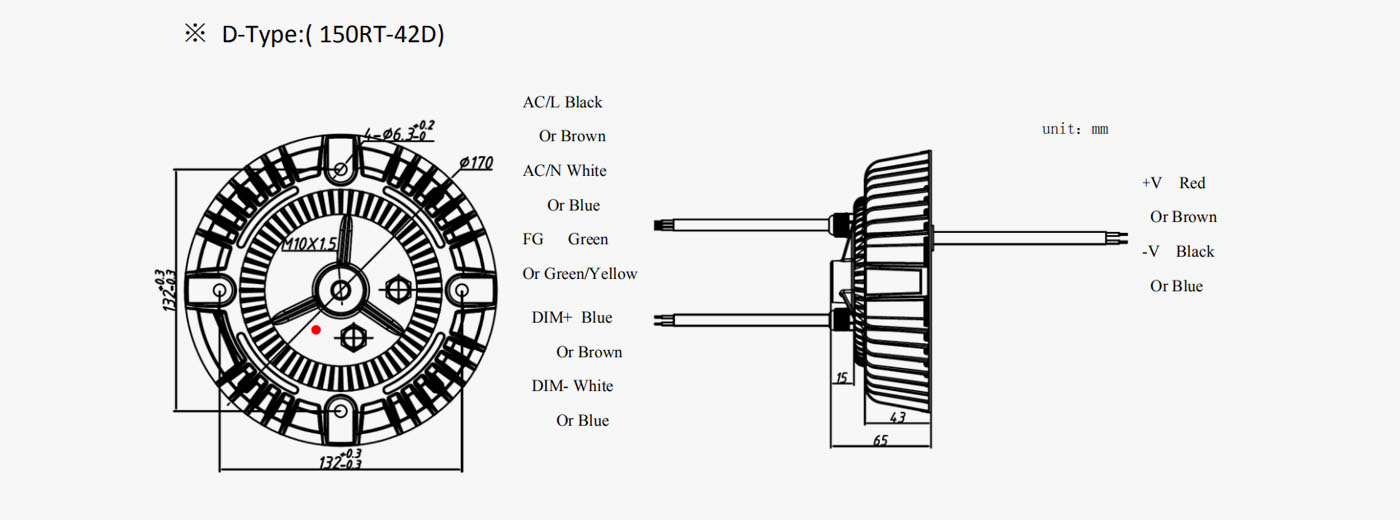

MECHANNIC SPECIFICATION

·tc: MAX. Case Temperature.(case temperature measured point)

·tc: MAX. Case Temperature.(case temperature measured point)

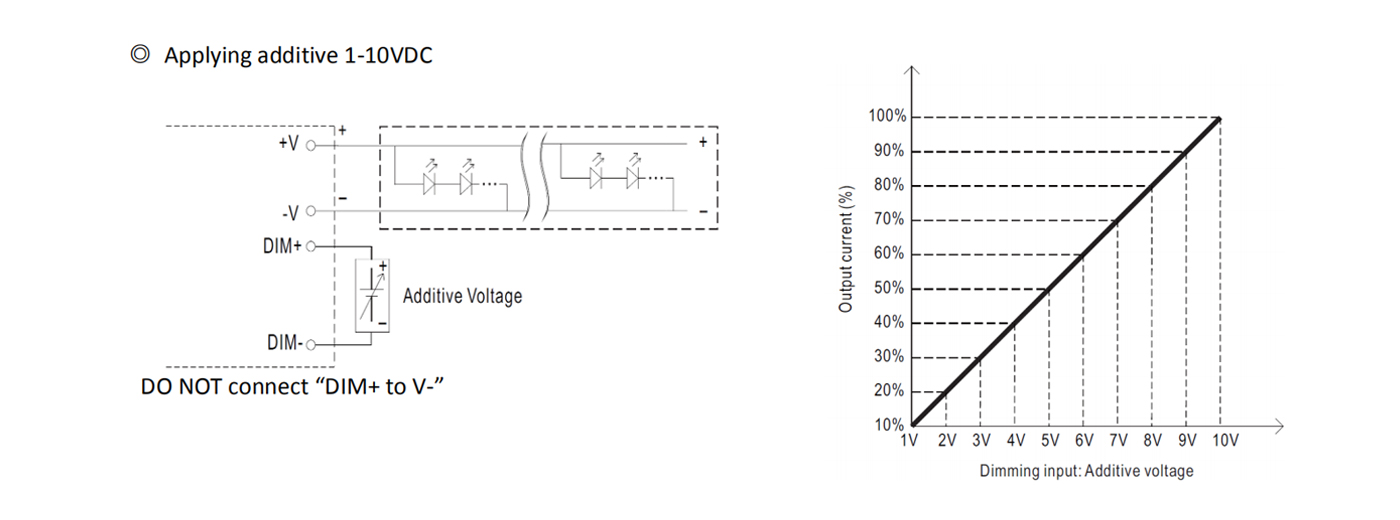

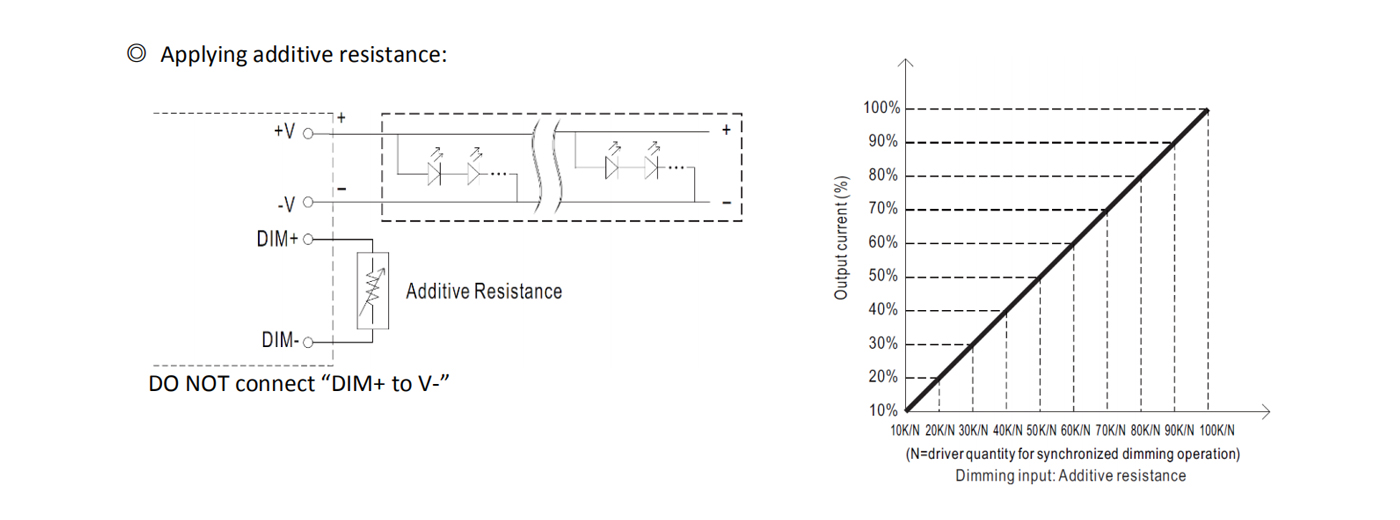

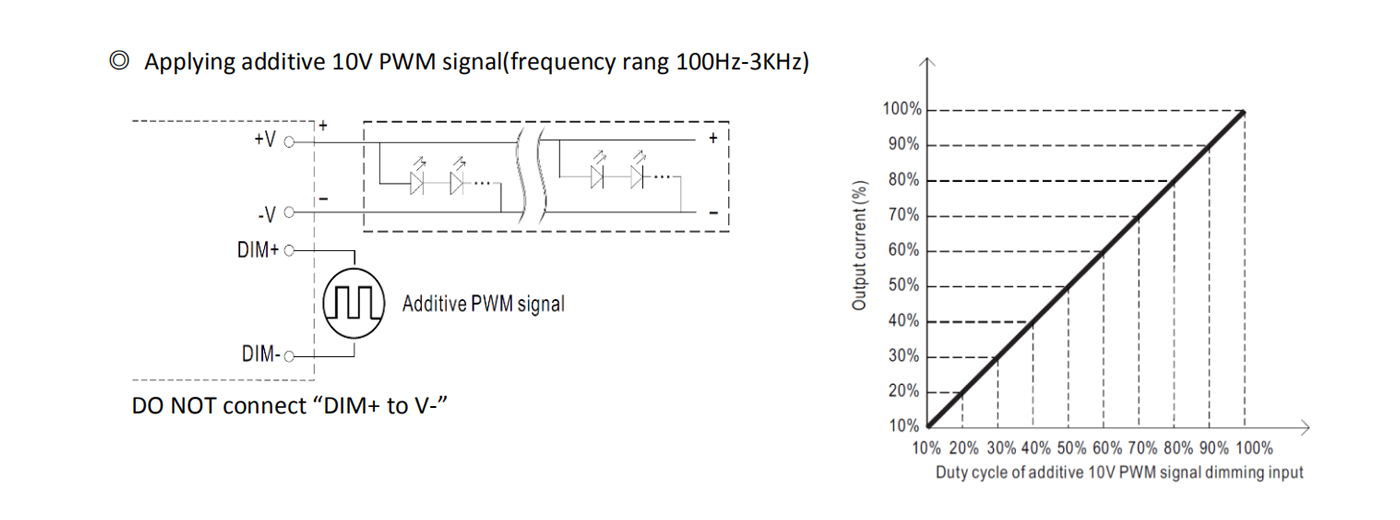

DIMMING OPERATION

3 in 1 dimming function(for D-Type)

· Output constant current level can be adjusted by applying one of the three methodologies between DIM+ and DIM-:1-10VDC, or 10V PWM signal or resistance.

· Direct connecting to LEDs is suggested. It is not suitable to be used with additional drivers.

· Dimming source current from power supply: 100uA (typ.).

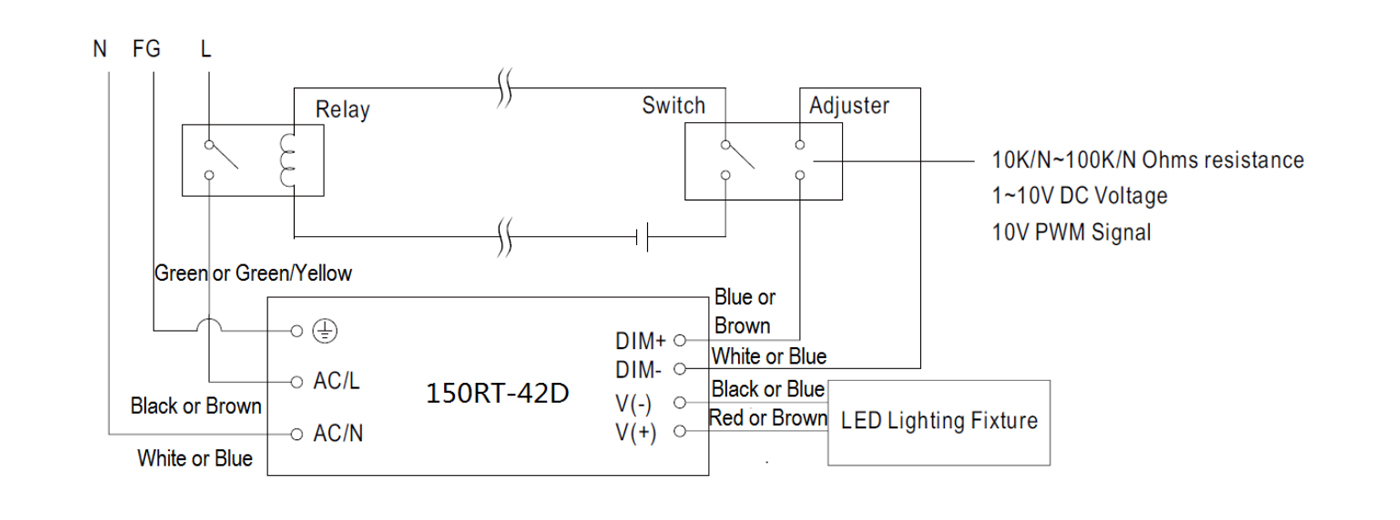

Note: In the case of turning the lighting fixture down to 0% brightness ,
please refer to the configuration as follow:

Using a switch and relay can turn ON/OFF the lighting fixture.

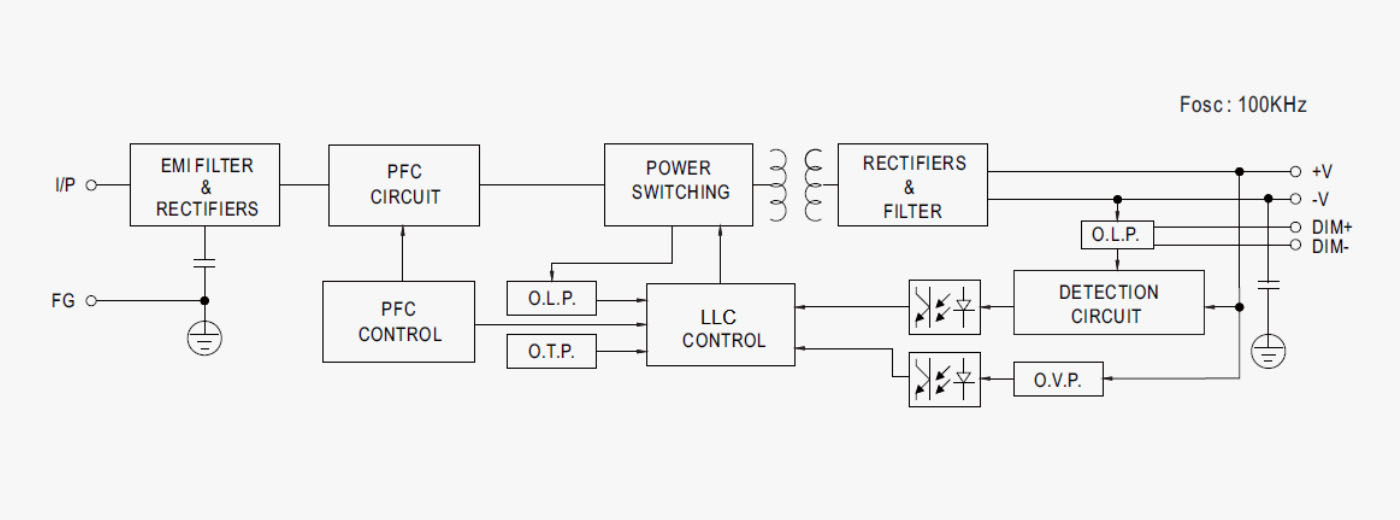

BLOCK DIAGRAM

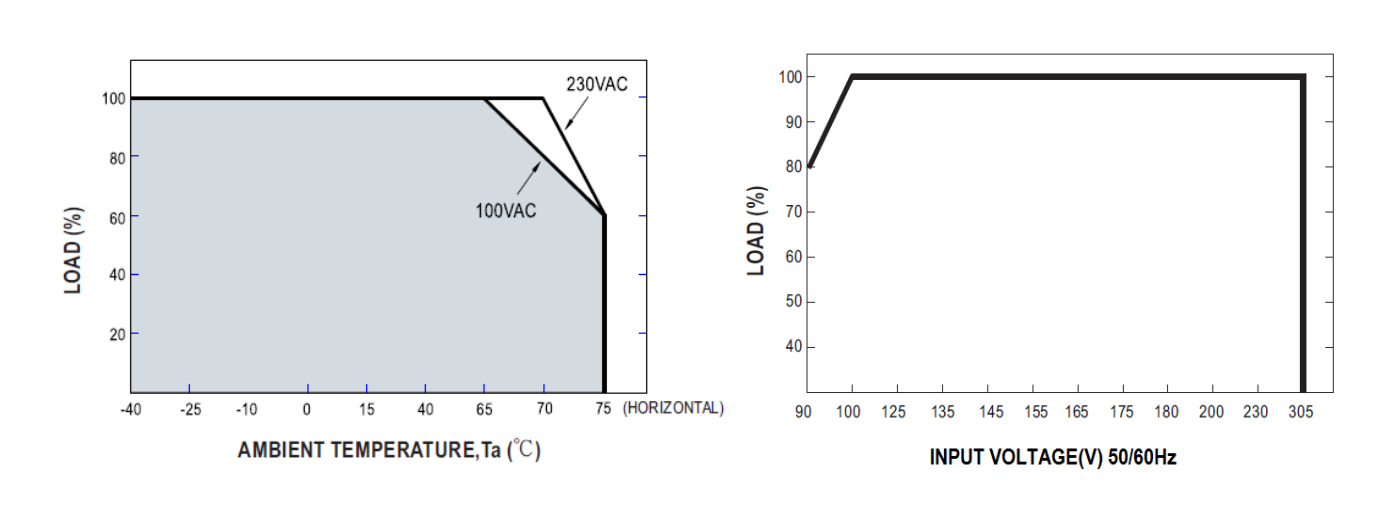

OUTPUT LOAD vs TEMPERATURE

STATIC CHARACTERISTICS

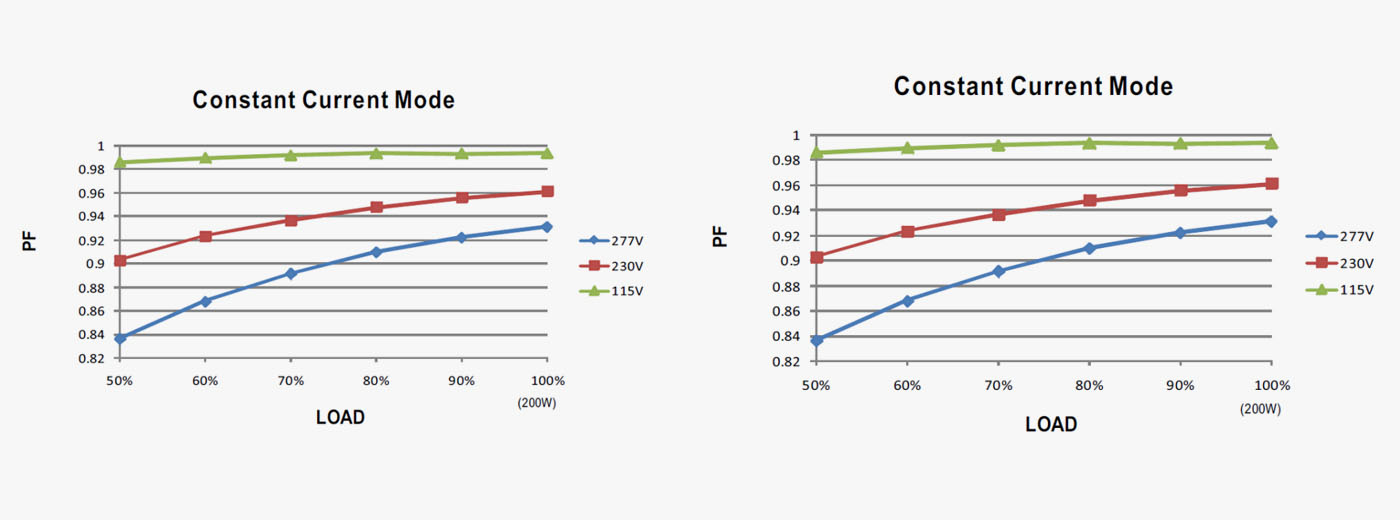

POWER FACTOR (PF) CHARACTERISTIC

EFFICIENCY vs LOAD

150RT series possess superior working efficiency that up to 93%
Can be reached in field applications.

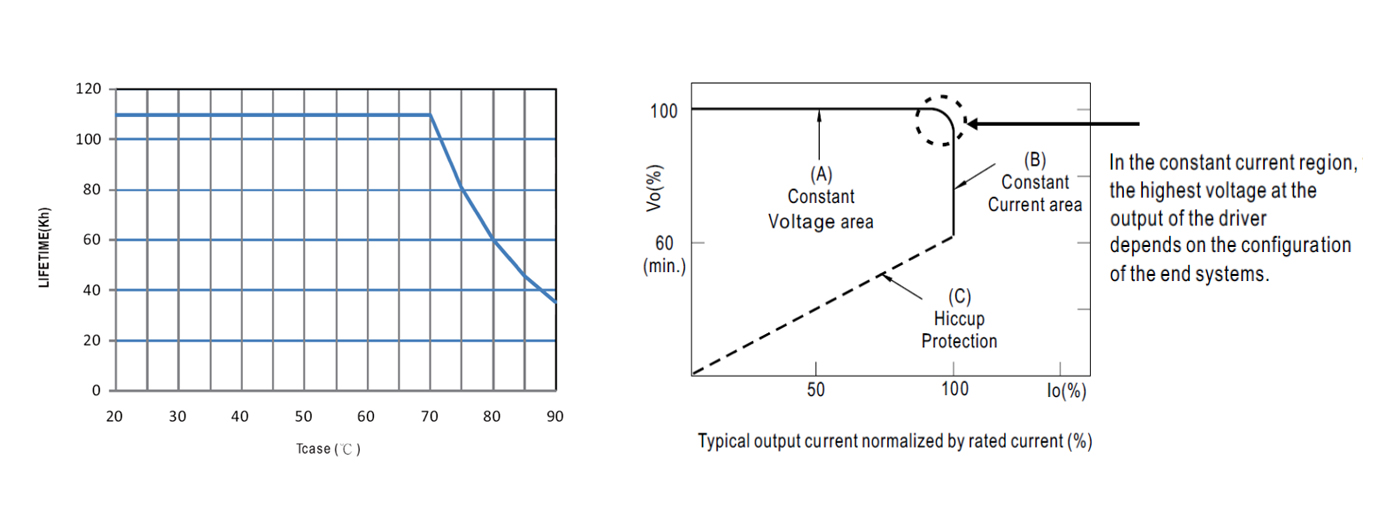

LIFETIME

DRIVING METHODS OF LED MODULE

This series is able to work in either Constant Current mode(a direct drive way) or Constant Voltage mode (usually through additional DC/DC drive) to drive the LEDs.
