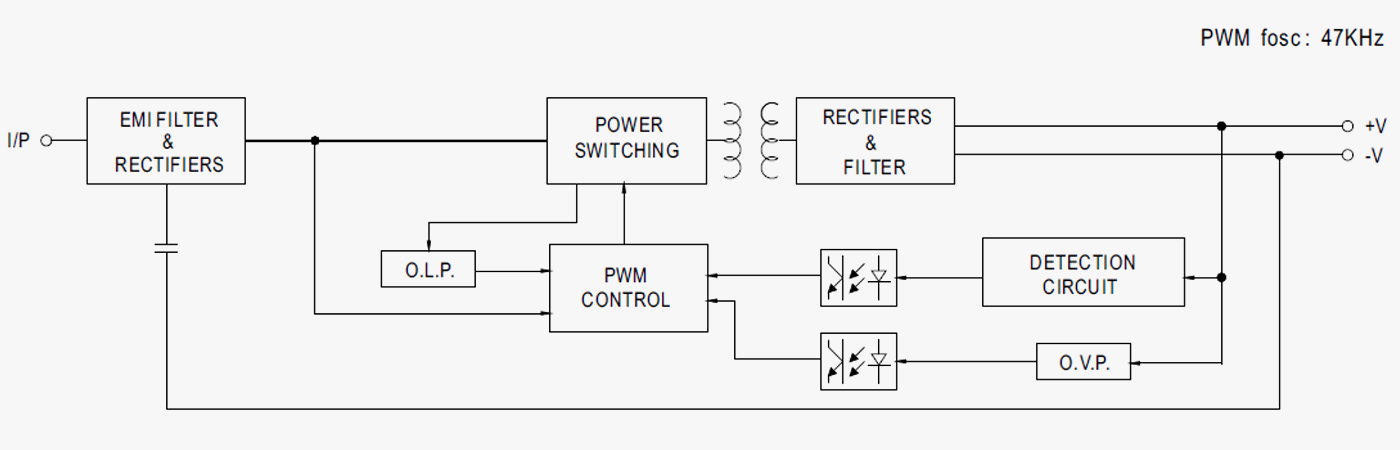

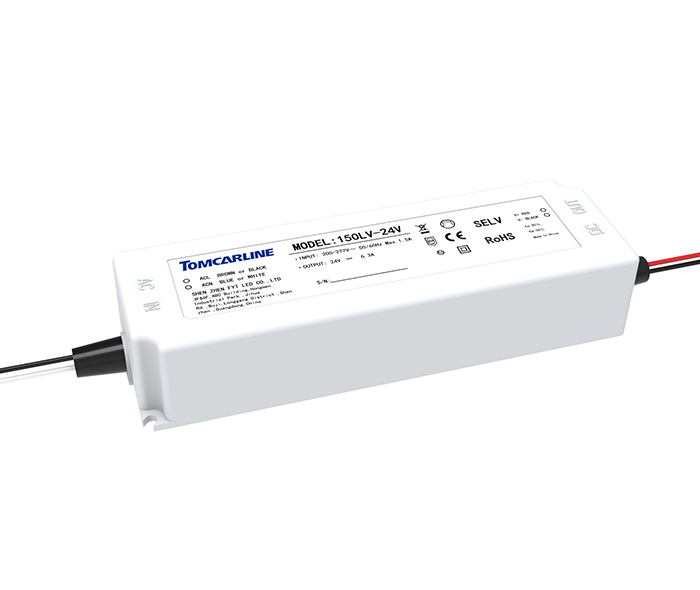

Constant voltage output design
AC input rang 180-305VAC
Protections：Short circuit/Over current/Over voltage/Over temperature
Fanless design, Cooling by free air convection
Class Ⅱ Power unit, no FG
P65/IP67 design for indoor or outdoor installations
Listed in UL Sign Component Manual (SAM , Conforms to UL 879,UL8750)
Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
Ultra-long life
| Parameter Name | Min. | Typ. | Max. | Unit |
| Input Voltage | 200 | 230 | 277 | Vac |
| Input Current | --- | 0.75 | 0.9 | A |
| Frequency Rang | 47 | 50\60 | 63 | Hz |
| Short Circuit Protection | Constant Current limiting, recovers automatically after fault condition is removed | |||
| Inrush Current(Typ.) | Cold Start 60A(twidth=590us measured at 50% Ipeak) at 230VAC | |||
| MAX. No. of PSUs on 16A Circuit Breaker | 2 units (circuit breaker of type B)/3 units (circuit breaker of type C) at 230VAC | |||
| Parameter Name | Min. | Typ. | Max. | Unit | |
|
150LV-12V (Constant Voltage) |
Rated Output Voltage | -5% | 12 | +5% | Vdc |
| Rated Output Current | 0 | 10 | 10 | Vdc | |
| Rated Output Power | --- | 120 | 120 | Adc | |
| Efficiency | 85 | 87 | --- | %（230VAC） | |
|
150LV-24V (Constant Voltage) |
Rated Output Voltage | -5% | 24 | +5% | Vdc |
| Rated Output Current | 0 | 6.3 | 6.3 | Vdc | |
| Rated Output Power | --- | 151.2 | 151.2 | Adc | |
| Efficiency | 87 | 89 | --- | %（230VAC） | |
| No Load Power | --- | --- | 0.5 | 1 | |
| Ripple & Noise | --- | --- | 0.5 | 1 | |
| Overshoot | --- | --- | --- | +5 | |
| Line regulation | -1 | -1 | +1 | ||
| Load Regulation | -2 | -2 | --- | +2 | |
| Over Voltage Protection | --- | --- | --- | 110 | |
| Short Circuit Protection | Constant Current limiting, recovers automatically after fault condition is removed | ||||
| Item | Min. | Typ. | Max. | Unit |

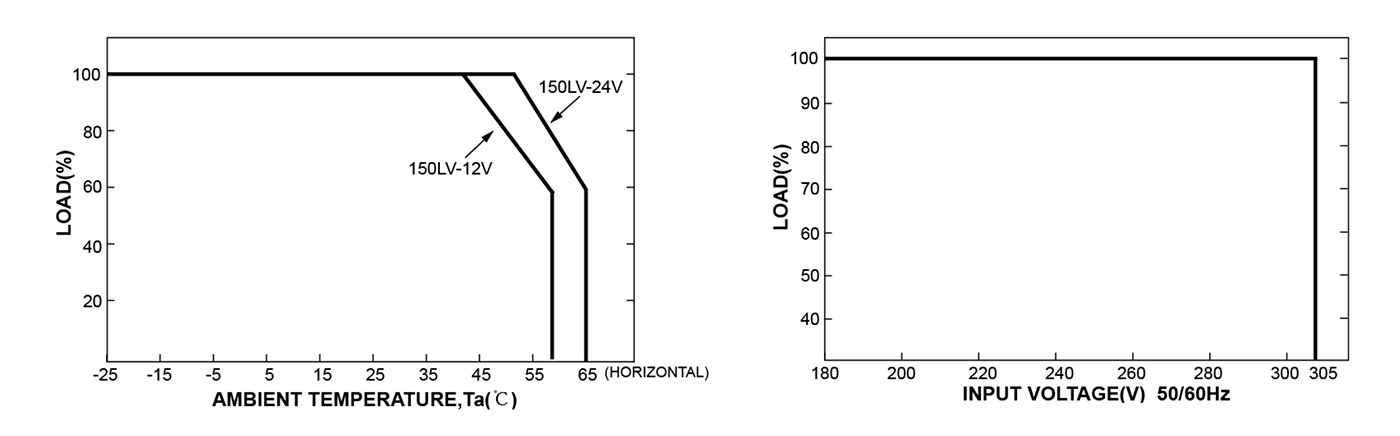

| Working Temp. | -25～+65℃（Please refer to “OUTPUT LOAD vs TEMPERATURE” section） | |||
| IP Rating | IP65 | |||
| MAX. Working Humidity | 20～95%RH non-condensing | |||
| Cooling Method | Cooling by free air convection，External LED Driver can improve the lifespan. | |||
| Storage Temp. , Humidity | -40～+80℃,10～95%RH | |||
| Working Atmosphere | 70 | --- | 106 | Kpa |
| Item | Min. | Typ. | Max. | Unit |
| I/P-O/P | 3750 | --- | --- | V(AC) |
| I/P-FG | 3750 | --- | --- | V(AC) |
| O/P-FG | 500 | --- | --- | V(DC) |
| Surge: L-N | --- | 2000 | --- | V |
| MTBF | ≥698.5Khrs MIL-HDBK-217F (25℃) |

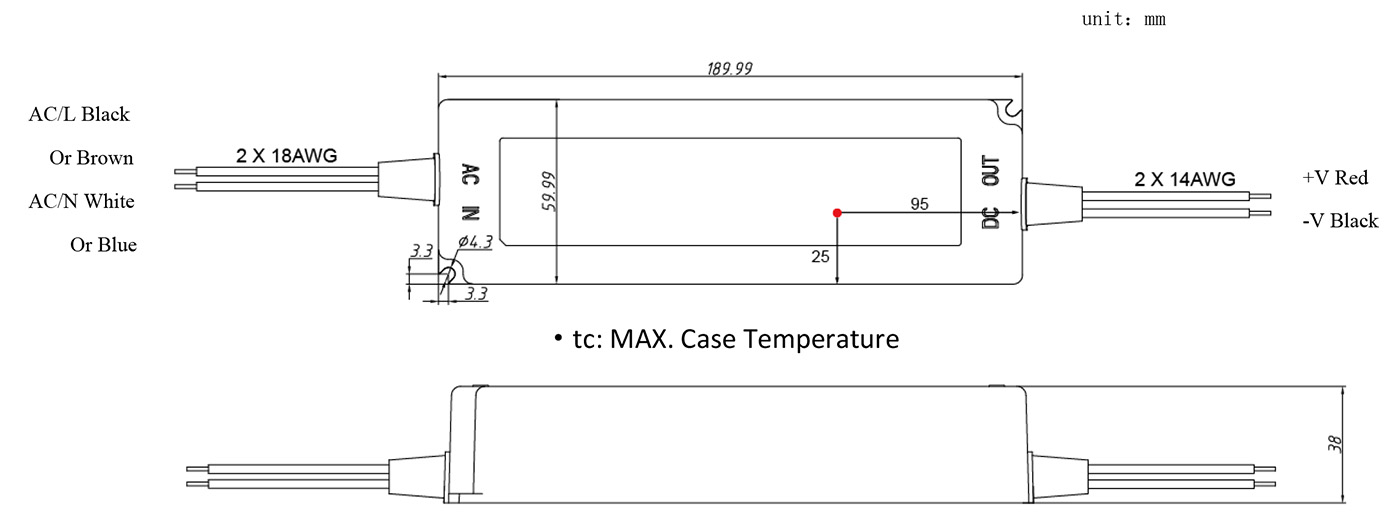

| Dimensions | 190X60X38mm |
