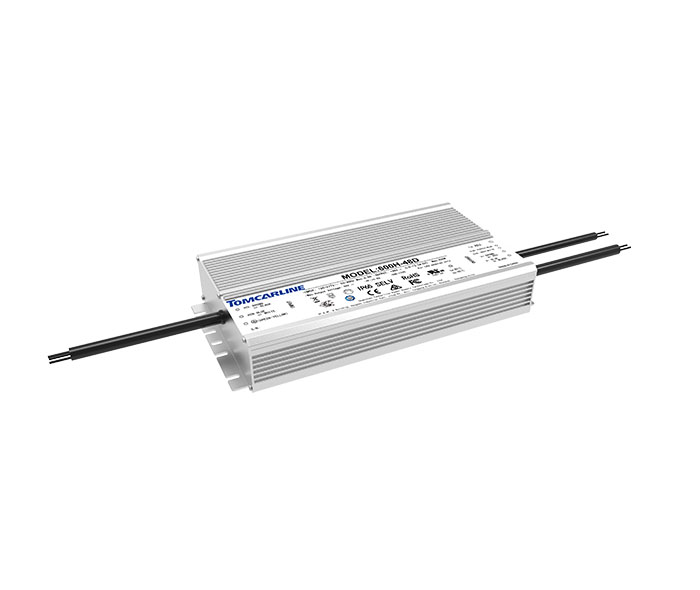

600H - H Series LED Driver

V: IP65Level，Io adjustable through built-in potentiometer D: IP65Level，3 in 1 dimming function (1-10VDC,10V PWM signal and resistance), Io adjustable through built-in potentiometer DA: DALI Dimming Control, Meet IEC 62386-101,102 & part of 207, Io adjustable through built-in potentiometer

Universal AC input/Full rang 90~305VAC

Built-in active PFC function

Protections: Short circuit / Over current / Over voltage

Cooling by free air convection

Built-in 3 in 1 dimming function (1-10VDC ,10V PWM signal or resistance)

DALI Dimming,100-300V push Dimming function

Metal case, IP65/IP67 design for indoor or outdoor installations

Suitable for outdoor LED street lighting, outdoor LED and moving sign applications

Ultra-long life

INQUIRY NOW

Product parameters
Specification

SPECIFCATION

INPUT SPECIFCATIONS

Parameter Name	Min.	Typ.	Max.	Unit
Input Voltage	100	230	277	Vac
Input Current	---	2.9	6.8	A
Power Factor	0.95	0.98	0.99	PF
THD	5	8	15	%
Frequency Rang	47	50\60	63	Hz
Inrush Current(Typ.)	Cold Start 72A(twidth=1012us measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A Circuit Breaker	1 units (circuit breaker of type B)/2units (circuit breaker of type C) at 230VAC

OUTPUT SPECIFCATIONS

Parameter Name		Min.	Typ.	Max.	Unit
600H-42	Output no-load Voltage	43	46	48	Vdc
	Output Serving Voltage	32	42	43	Vdc
	Output Current	-3%	14.28	+3%	Adc
	Efficiency	91	94	---	%（230VAC）
600H-48	Output no-load Voltage	49	50	52	Vdc
	Output Serving Voltage	36	48	49	Vdc
	Output Current	-3%	12.5	+3%	Adc
	Efficiency	91	94	---	%（230VAC）
Overshoot		---	---	10	％
Ripple & Noise		---	0.5	1	%（100% load）
No Load Power		---	0.5	2	W
Over Current Protection		---	---	110	%
Short Circuit Protection		Constant Current limiting, recovers automatically after fault condition is removed

WORKING ENVIRONMENT

Item	Min.	Typ.	Max.	Unit
Working Temp.	-40～+70℃（Please refer to “OUTPUT LOAD vs TEMPERATURE” section）
IP Rating	IP65,IP67
MAX. Working Humidity	20～95%RH non-condensing
Cooling Method	Cooling by free air convection，External LED Driver can improve the lifespan.
Storage Temp. , Humidity	-40～+80℃,10～95%RH
Working Atmosphere	70	---	106	Kpa

SAFETY

Item	Min.	Typ.	Max.	Unit
I/P-O/P	3750	---	---	V(AC)
I/P-FG	2000	---	---	V(AC)
O/P-FG	500	---	---	V(DC)
Surge: L-N	---	4000	---	V
Surge :L,N-FG	---	6000	---	V

OTHER

MTBF	≥117.3Khrs MIL-HDBK-217F (25℃)
Dimensions	280x145x48.2mm
Weight	3.6kg

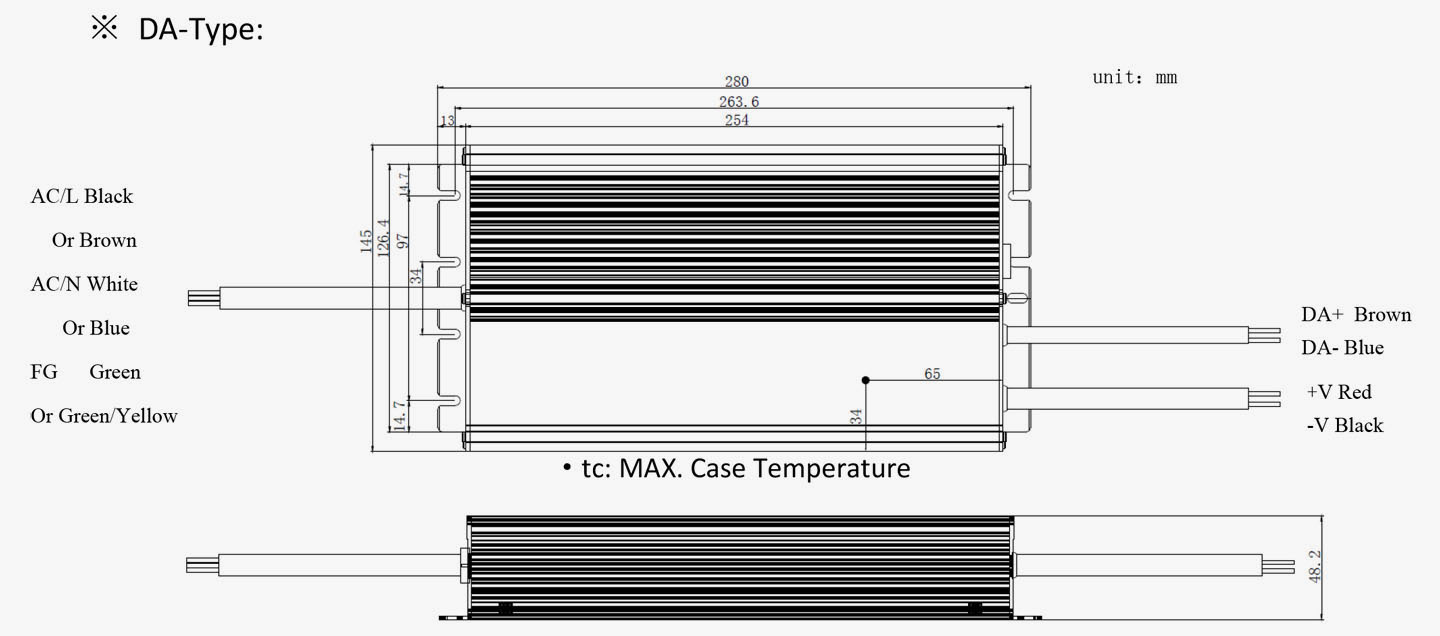

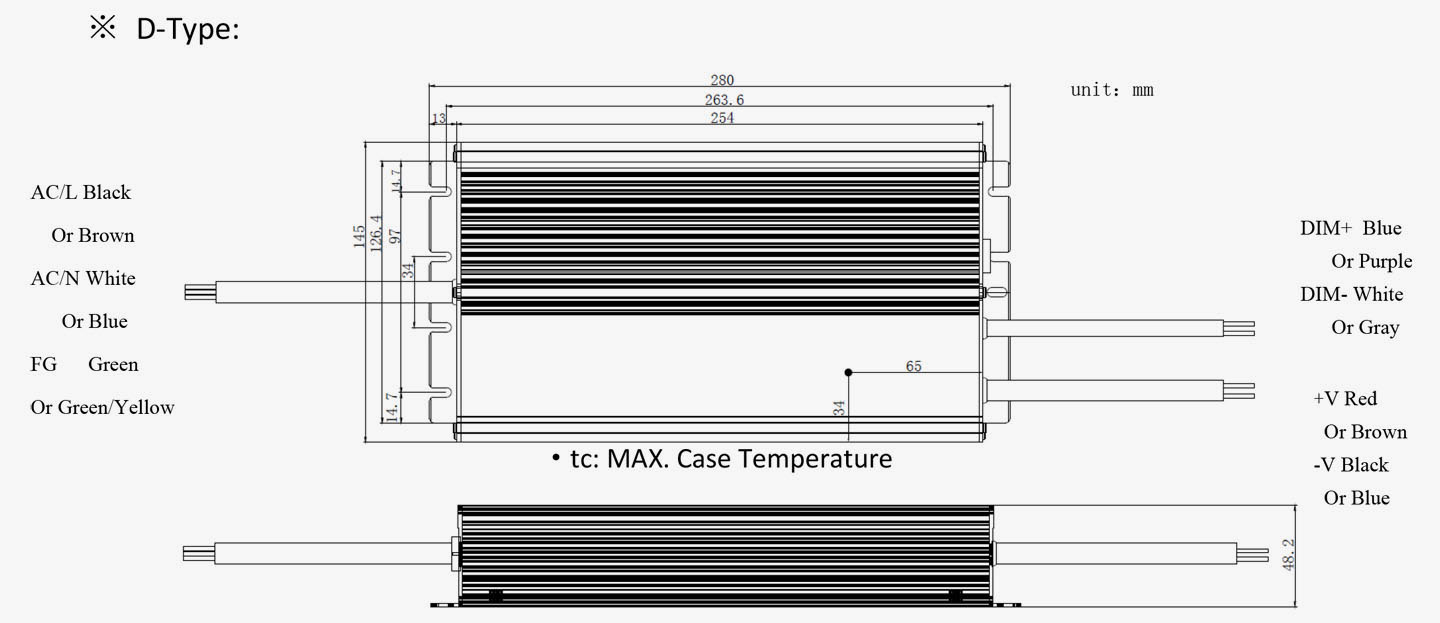

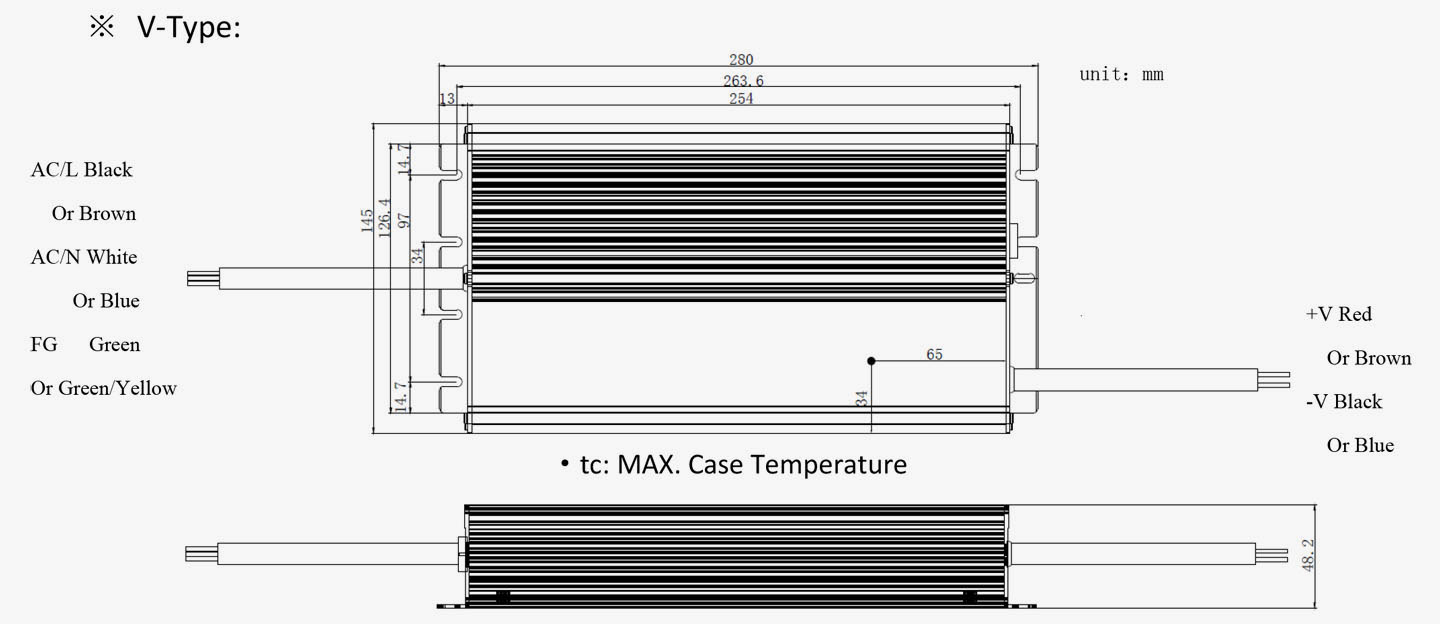

MECHANNIC SPECIFICATION

DIMMING OPERATION

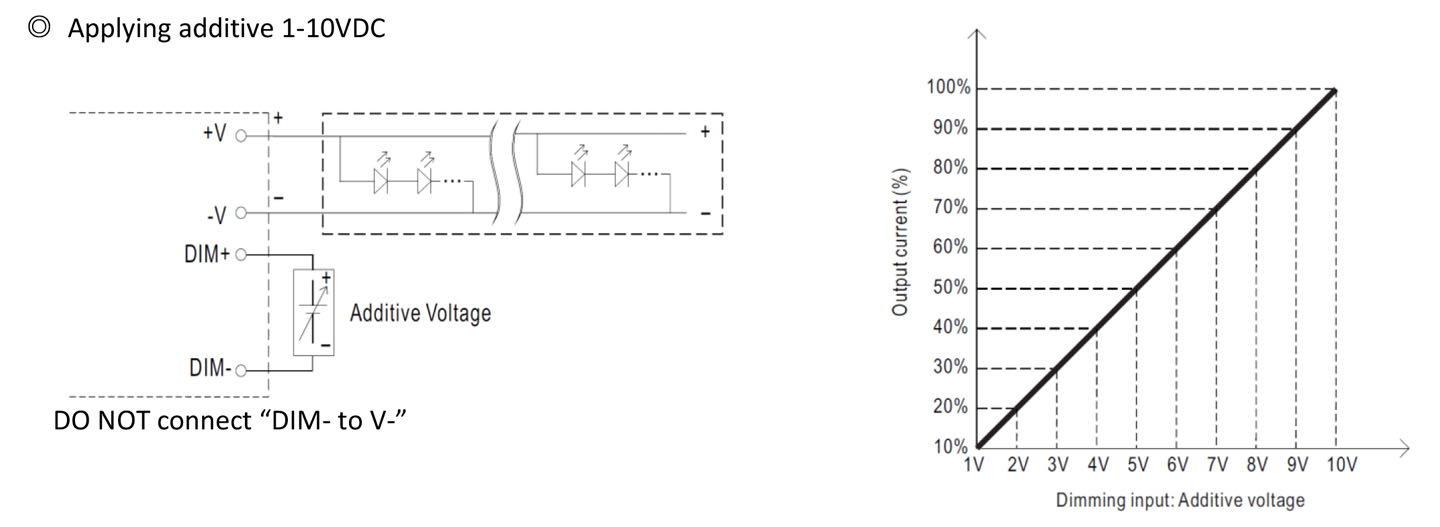

3 in 1 dimming function(for D-Type)

· Output constant current level can be adjusted by applying one of the three methodologies between DIM+ and DIM-:1-10VDC, or 10V PWM signal or resistance.

· Direct connecting to LEDs is suggested. It is not suitable to be used with additional drivers.

· Dimming source current from power supply: 100uA (typ.).

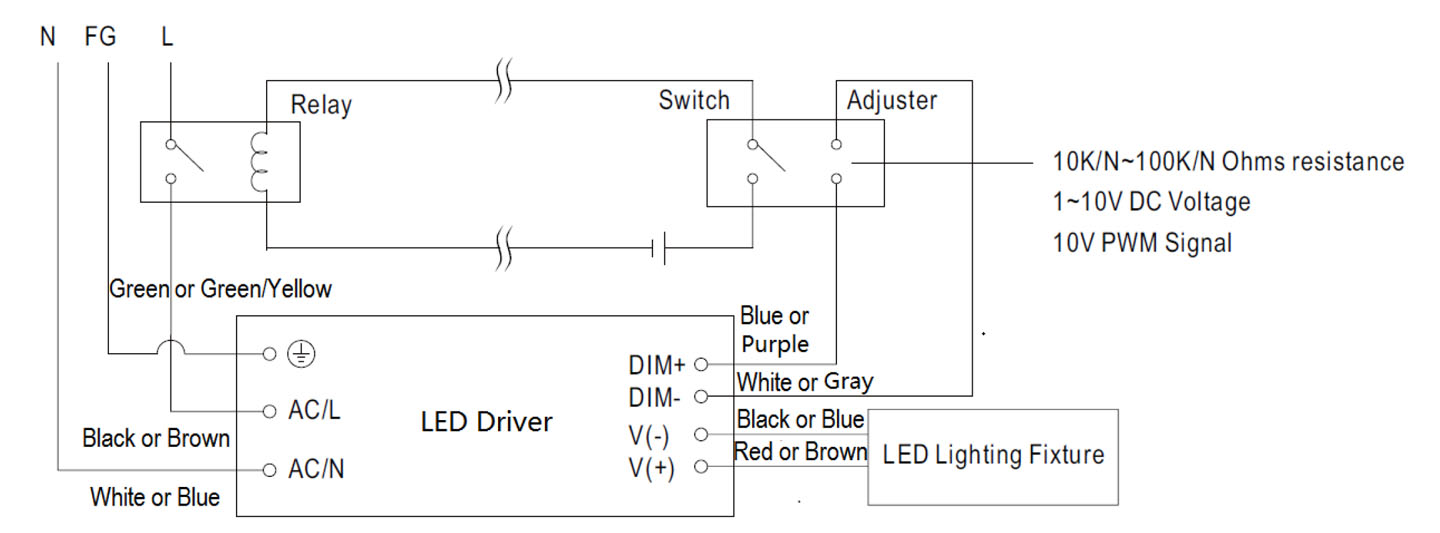

Note: In the case of turning the lighting fixture down to 0% brightness , please refer to the configuration as follow:

Using a switch and relay can turn ON/OFF the lighting fixture.

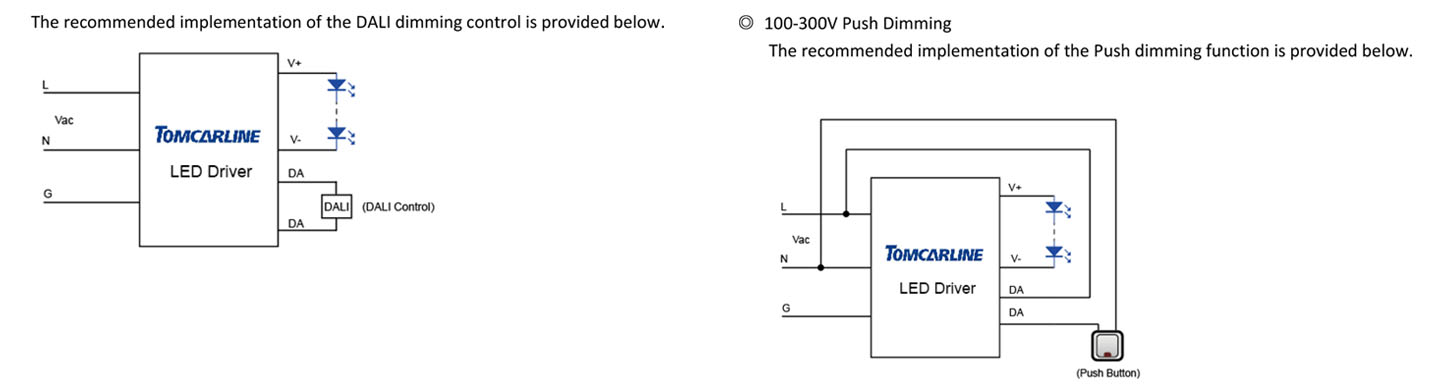

DALI Dimming (for DA-Type)

Dimming Specifications

Parameter	Min.	Typ.	Max.
DA、DA High Level	9.5V	16V	22.5V
DA、DA Low Level	-6.5V	0V	6.5V
DA、DA Current	0mA	-	2mA

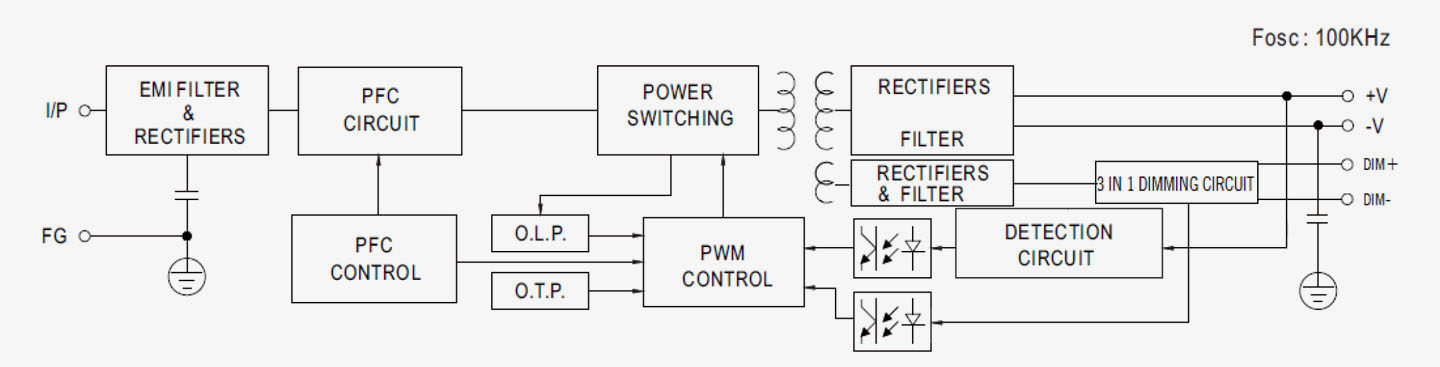

BLOCK DIAGRAM

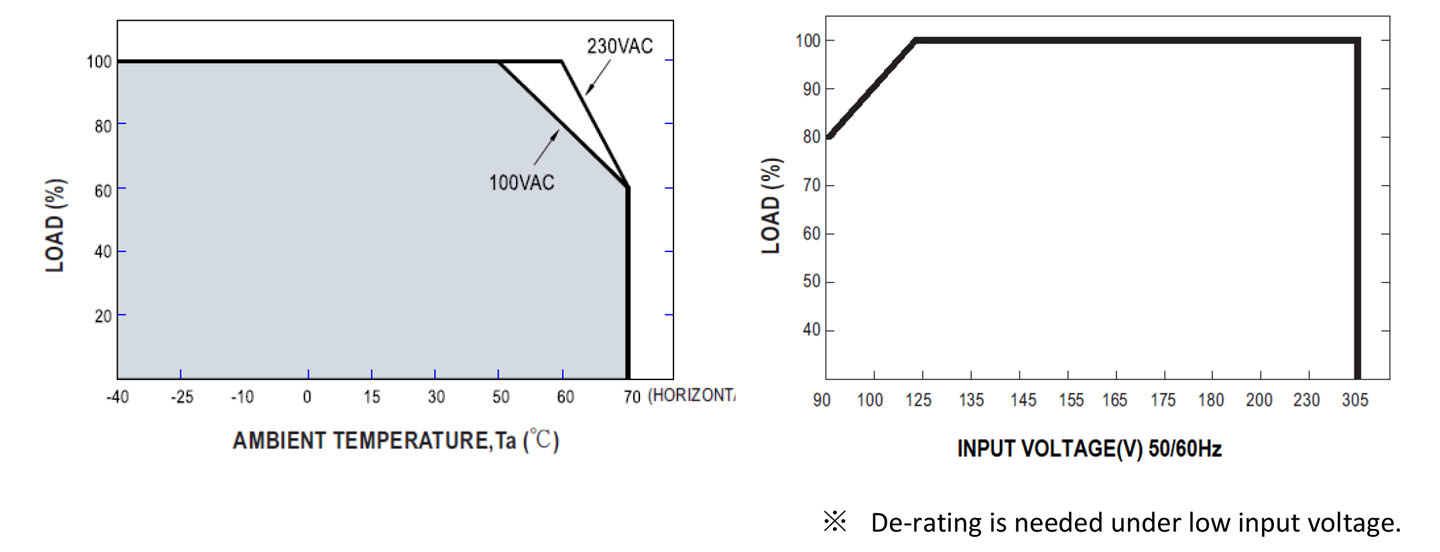

OUTPUT LOAD vs TEMPERATURE

STATIC CHARACTERISTICS

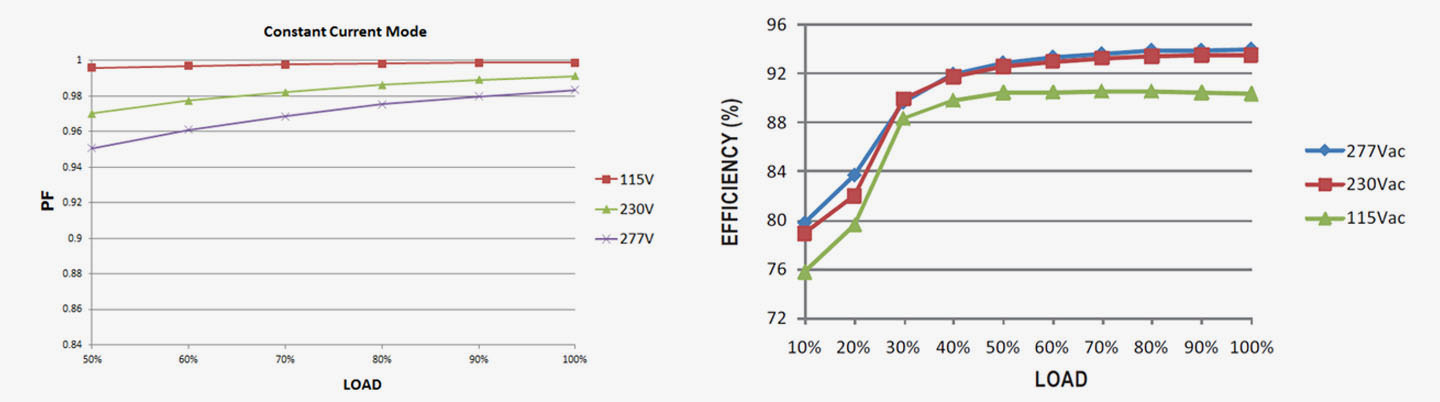

POWER FACTOR (PF) CHARACTERISTIC

EFFICIENCY vs LOAD

600H series possess superior working efficiency that up to 94%
Can be reached in field applications.

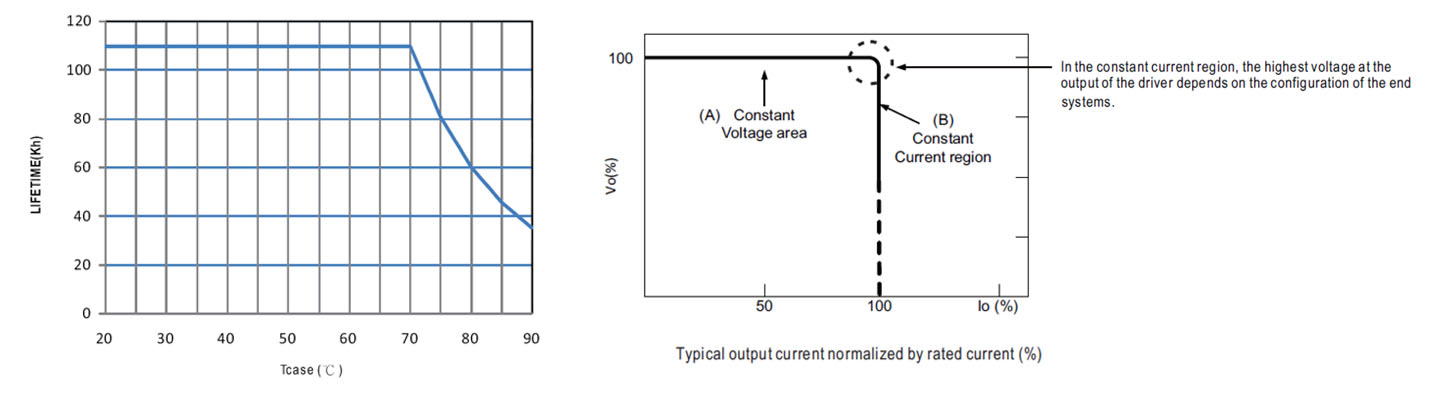

LIFETIME

DRIVING METHODS OF LED MODULE

This series is able to work in either Constant Current mode(a direct drive way) or Constant Voltage mode (usually through additional DC/DC drive) to drive the LEDs.
